Vishay VCAN26A2-03G-E3-08, Dual-Element Bi-Directional TVS Diode, 150W, 3-Pin SOT-323, Диод

Vishay TVS Diode

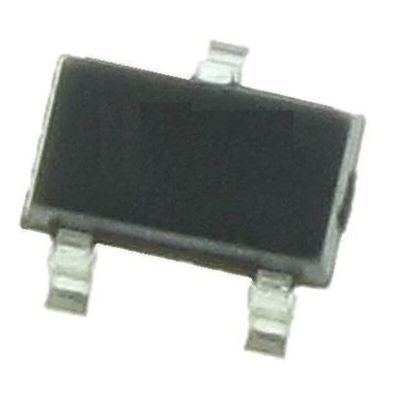

The Vishay SOT- 323-3 package, bidirectional symmetrical (BiSy) low capacitance, dual-line ESD-protection diode has a breakdown voltage rating of 32V and peak pulse current rating of a 3A.

Features and Benefits

• ESD capability according to AEC-Q101: human body model: class H3B > 8 kV
• ESD immunity ±30kV contact discharge and ±30kV air discharge
• Lead (Pb) free component
• Low leakage current IR < 0.05μA
• Low load capacitance CD < 15pF
• Operating junction temperature ranges between -55°C and 150°C
• Pins plated with tin (Sn)
• Small package style

Applications

• Automotive load dump
• CAN and FLEX-Bus
• Sensitive electronics protections

Certifications

• AEC-Q101 qualified
• e3
• IEC 61000-4-2
• IEC 61000-4-5
• J-STD-020
• UL 94 V-0 listed
