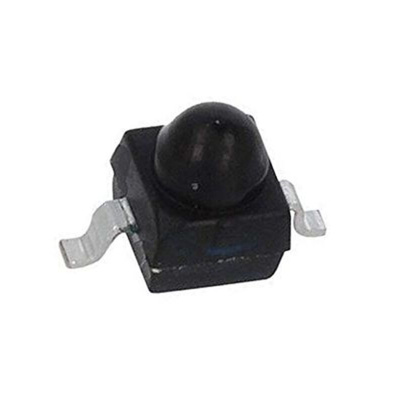

Vishay PIN Diode
The Vishay TEMD series surface mount silicon PIN photodiode has a photocurrent rating of 12μA and peak wavelength rating of 950nm. It has high speed and high radiant sensitivity in black, surface mount plastic packages with lens and daylight blocking filter.
Features and Benefits
• Angle of half sensitivity is F= ±15°
• Daylight blocking filter matched with 870nm to 950nm emitters
• Dimensions (LxWxH) are 2.5mmx2mmx2.7mm
• Fast response times
• Floor life is 168hrs
• High radiant sensitivity
• Lead (Pb) free component
• Operating temperature ranges between -40°C and 85°C
• Package forms are GW, RGW, yoke, axial
• Package matches with IR emitter series TSMF1000
• Radiant sensitive area of 0.23mm²
Applications
• Free air data transmission systems
• High speed detector for infrared radiations
• Infrared remote controls
Certifications
• 2002/95/EC
• E3
• J-STD-020
• WEEE 2002/96/EC
