Vishay TVS Diode

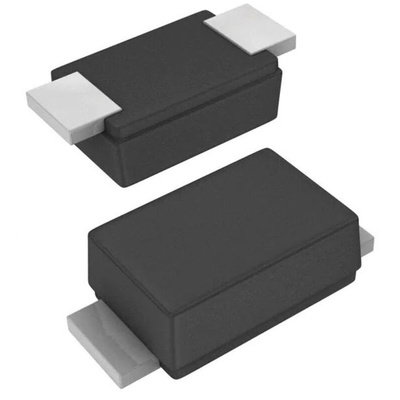

The Vishay SMF DO-219AB package, surface mount ESD protected unidirectional TVS diode has a breakdown voltage rating of 44.4V and peak pulse current rating of 3.1A.
Features and Benefits
• 200W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01%
• ESD capability according to AEC-Q101: human body model: class H3B > 8 kV
• ESD immunity ±30kV contact discharge and ±30kV air discharge
• Excellent clamping capability
• Fast response time
• Halogen and Lead (Pb) free component
• Low incremental surge resistance
• Low-Noise technology
• Low-profile package
• Operating junction temperature ranges between -65°C and 175°C
• Wave and reflow solderable
Applications
• Automotive load dump
• Sensitive electronics protections like ICs, MOSFET, signal lines of sensor units for consumers, computers, industries and telecommunication
Certifications
• AEC-Q101 qualified
• Automotive Grade
• e3
• IEC 61000-4-2
• J-STD-020
• UL 94 V-0 listed
