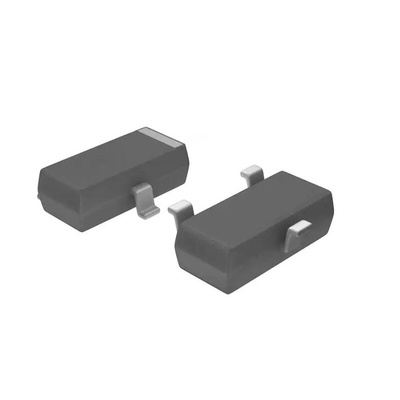

N-Channel MOSFET, 200 mA, 240 V, 3-Pin SOT-23 Vishay TN2404K-T1-E3, МОП-транзистор

Vishay MOSFET

The Vishay surface mount N-channel MOSFET is a new age product with a drain-source voltage of 240V and a maximum gate-source voltage of 20V. It has drain-source resistance of 4ohms at a gate-source voltage of 10V. It has a maximum power dissipation of 360mW and continuous drain current of 200mA. The minimum and a maximum driving voltage for this MOSFET is 2.5V and 10V respectively. The MOSFET has been optimized for lower switching and conduction losses. The MOSFET offers excellent efficiency along with a long and productive life without compromising performance or functionality.

Features and Benefits

• Easily driven without buffer
• Excellent thermal stability
• Full voltage operation
• Low error voltage
• Low input and output leakage
• Low offset voltage
• Low on resistance: 4ohms
• Low power/voltage driven
• Operating temperature ranges between -55°C and 150°C
• Secondary breakdown free: 260V

Applications

• High voltage drivers: relays, solenoids, lamps, hammers, displays, transistors, etc
• Motor control
• Power supply, converters
• Telephone mute switches, ringer circuits

Certifications

• AEC-Q101
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• Rg tested
• UIS tested
