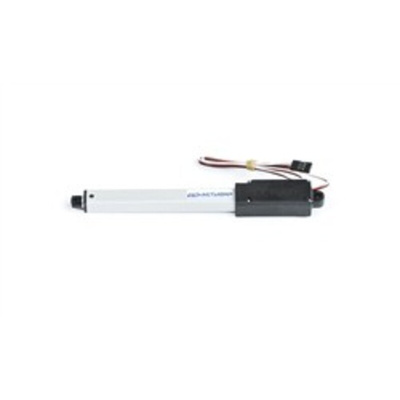

L16-50-150-6-R, Actuonix Micro Linear Actuator, 50mm, 6V dc, 8mm/s, Привод

Miniature Linear Motion Series · L16

Actuonix Motion Devices’ unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These linear actuators are a superior alternative to designing your own push/pull mechanisms.

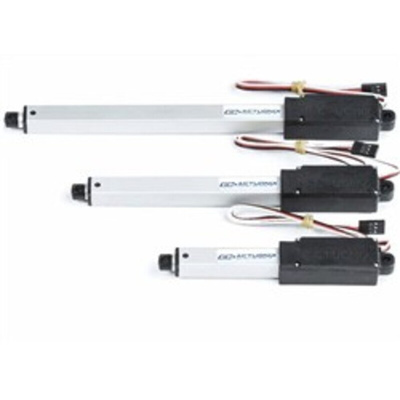

The L16 actuators are complete, self contained linear motion devices with position feedback for sophisticated position control capabilities, end of stroke limit switches for simple two position automation, or RC servo. Several gear ratios are available to give you varied speed/force configurations.

L16-R miniature linear servos are a big brother to the L12-R line. They operate as a direct replacement for standard rotary servos. They use the same 3 wire connector, ground power and control. Regardless of how you drive your servos, be it with an RC receiver, an Arduino board, or a VEX micro-controller, the L16-R servo will function in place of a regular rotary servo, but offers linear motion.Our L16 line are constructed using an anodized aluminum shaft, metal gearbox, and steel ball bearings. These quality linear servos are not only built to last, but will look awesome on your model.

Optional stroke lengths of 50mm, 100mm or 140mm
3 gearing options for maximum forces between 50N (11lbs) and 200N (45lbs) and maximum speeds between 8mm/s and 32mm/s
Available only in 6V to ensure compatibility with RC receivers
Plug 'n play with most RC receivers
3 Stroke lengths
3 Gearing options
Stall protection

Datasheet
