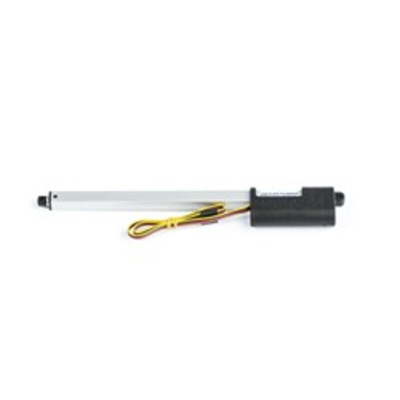

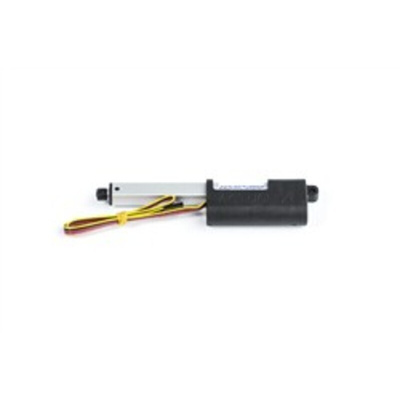

P16-50-22-12-P, Actuonix Micro Linear Actuator, 50mm, 12V dc, 46mm/s, Привод

Miniature Linear Motion Series · P16

Actuonix Motion Devices unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These linear actuators are a superior alternative to designing your own push/pull mechanisms.

The P16 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Several gear ratios are available to give you varied speed/force configurations.

The P16 is the next generation DC linear actuator from Actuonix. Featuring a compact side by side design with a planetary gearbox, these units offer higher speeds, higher forces and longer life than our other units. The P16 is powerful and weighing in at 95g-140g, it's light enough to mount almost anywhere.These units are operated by reversing polarity on the actuator's two leads. The "S" series has end of stroke limit switches to that will turn the unit off if it runs into its end stop. These can be run with a DPDT switch, push button switch, wireless controller, relay or for RC a you can use a brushed reversible DC motor controller.

Stroke lengths of 50mm, 100mm, 150mm and 200mm
3 gearing options for maximum forces between 50N (11lbs) and 300N (67lbs) and speeds between 4.8mm/s and 46mm/s
12V Input
Compact side by side design
More powerful than our other units
Available stroke lengths of 50mm, 100mm, 150mm and 200mm
3 different gearing options

Datasheet
