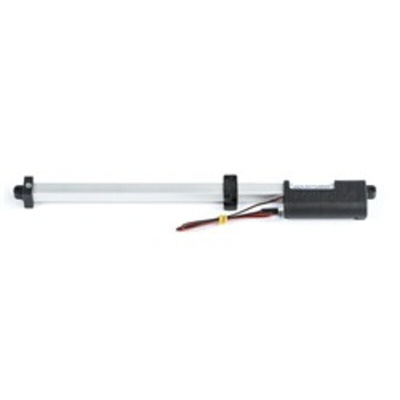

T16-100-256-12-S, Actuonix Micro Linear Actuator, 100mm, 12V dc, 4.8mm/s, Привод

Miniature Linear Motion Series · T16

Actuonix's unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These linear track actuators are a superior alternative to designing your own push/pull mechanisms.

The T16 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Several gear ratios are available to give you varied speed/force configurations.

Actuonix's unique line of Micro Linear Track Actuators enables a new generation of motion enabled product designs, with capabilities that have never before been combined in a device of this size. These linear track actuators are a superior alternative to designing your own push/pull mechanisms.Built on the same platform as the proven P16, the T16-S tracktuators are complete, self-contained linear motion devices with end of stroke limit switches for simple two position automation. The track design makes the T16 significantly shorter than the same stroke length P16, since instead of an extending shaft, a sliding mount is provided.

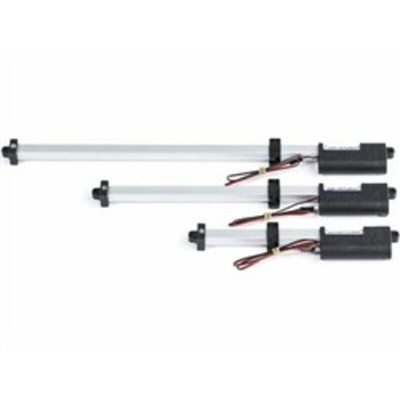

Optional stroke lengths of 100mm, 200mm or 300mm
3 gearing options for maximum forces between 50N (11lbs) and 300N (67lbs) and speeds between 4.8mm/s and 46mm/s
Only available as a 12V unit
Compact Side by Side Design
Longer available strokes (300mm)
Higher forces
Faster speeds

Premium components: large sealed stainless steel bearings, planetary gearbox, stainless steel lead screw, and glass re-enforced nylon housing.

Datasheet
