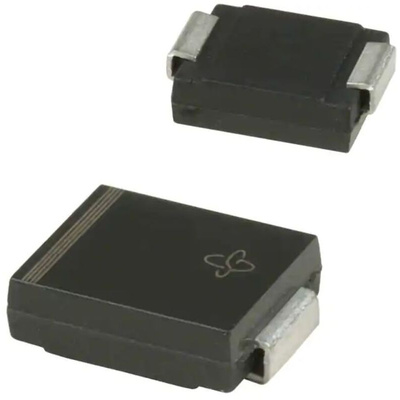

Vishay TVS Diode
The Vishay TVS diode is an SMC (DO-214AB) surface mount unidirectional and bidirectional TVS diode with stand-off voltage of 128V and reverse breakdown voltage of 158V. It has a maximum peak pulse current rating of 7.2A.
Features and Benefits
• 1500 W peak pulse power capability with a 10/1000μs waveform, repetitive rate (duty cycle): 0.01%
• Available in unidirectional and bidirectional
• Excellent clamping capability
• Glass passivated chip junction
• Halogen and lead (Pb) free component
• Ideal for automated placement
• Low incremental surge resistance
• Low profile package
• Meets MSL level 1, LF maximum peak of 260°C
• Operating junction temperature range between -65°C and 150°C
• Solderable matte tin plated lead terminals
• Very fast response time
Applications
• Automotive load dump
• Sensitive electronics protections like ICs, MOSFET, signal lines of sensor units for consumers, computer, industrial, telecommunication
Certifications
• AEC-Q101 qualified
• JESD 201 class 2
• JESD 22-B102
• J-STD-002
• J-STD-020
• UL 94 V-0 listed
