RS PRO Cube Connector Connecting Component, Strut Profile 20 mm, Groove Size 5mm

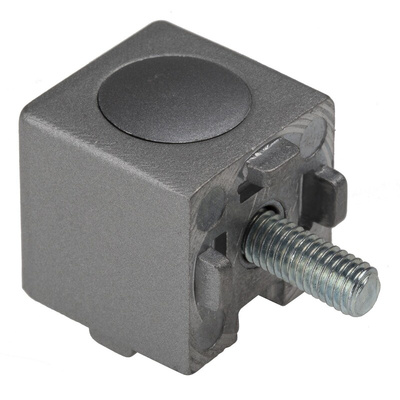

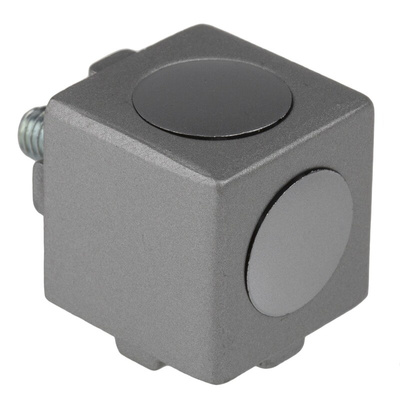

RS PRO 2D Cube Connector

Looking for a way to connect two different structural parts at a right angle? Use this RS PRO 2D (2-dimensional) cube connector to join aluminium profiles at 90° angles.

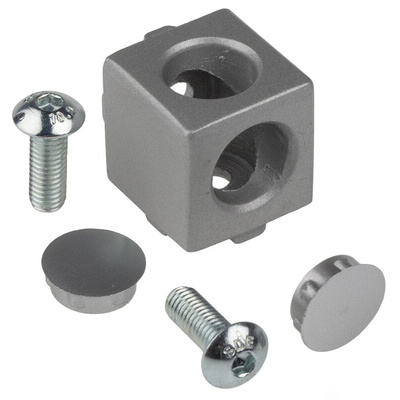

The aluminium die-cast construction of the cube connector makes it lightweight so it won't put unnecessary strain on connections and warp the alignment of assemblies. You can cover the bores with the included cover caps to round off connections.
This cube connector carries the RoHS (Restriction of Hazardous Substances) certification, meaning it contains only negligible amounts of any materials that can harm your health. You can use the item to make connections in your home and workshop.

Features and Benefits

• Cube connector type
• Fits groove size of 5 mm
• Fits strut profile of 20 mm
• Connector bracket and joint structural element type
• Manufactured in conformity with American (ANSI/ESD S20.20:2014) and European (BS EN 61340-5-1:2007) standards for electrostatic control

The RS PRO Pivot joint allows you to attach two profiles at different angles within 180 degrees. The separate locating pins allow you to control and make fine adjustments so you can lock the pivot joint into the exact position you want.

Joint connector type
Connector bracket and joint structural element type

Datasheet

RS PRO Structural Systems Guide
