CP201-32, Martindale Socket Tester 16/32A 230V ac CAT III 300 V

Martindale CP201 230V 32A Industrial Socket Tester

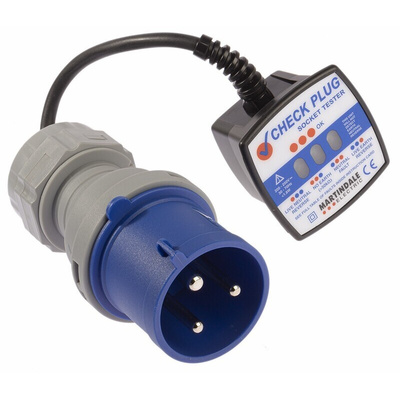

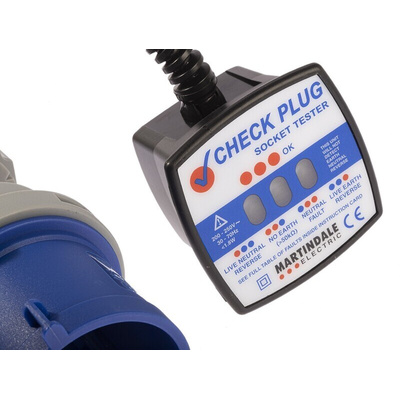

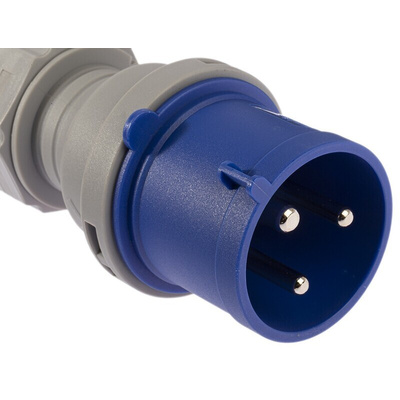

The Martindale blue 16A/32A, 3-pin socket tester is an industrial version of the classic check plug. It has an operating voltage range from 200VAC to 250VAC and current rating of 32A. The wiring faults are instantly indicated by one or more LED failing to illuminate. This pattern of lit LED indicates the type of fault detected. There is a look-up chart on the tester for quick fault diagnosis. It is applicable for an industrial or site electrical installations.

Features and Benefits

• Open earth indication: earth resistance >50kohm at 230VAC
• Open neutral indication: neutral resistance >50kohm at 230VAC
• Power consumption: <1.8W
• Operating temperature ranges between -10°C and 40°C

• EN 60309
• EN61010-1
• EN61326-1
• EN61326-2-2
• CE Approved

Datasheet
