RS PRO LED Battery Meter

Introducing RS PRO LED battery meters, a range of high quality and durable meters used to test and monitor various functions relating to a battery's level of charge, maintenance, battery life or status. RS PRO Digital LED battery meters are ideal for use in maintenance applications with limited space, due to the compact and reliable design. Digital battery meters are a simple and cost-effective way of assessing a batteries condition in real time, helping to maintain battery life and power.

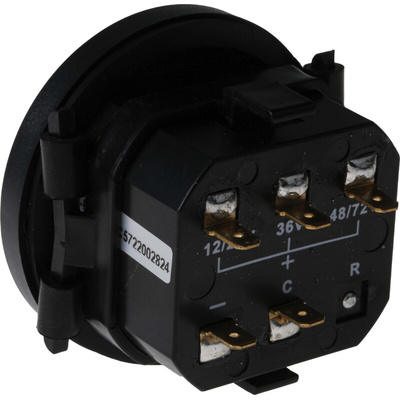

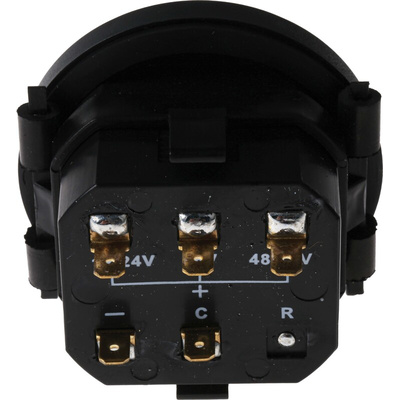

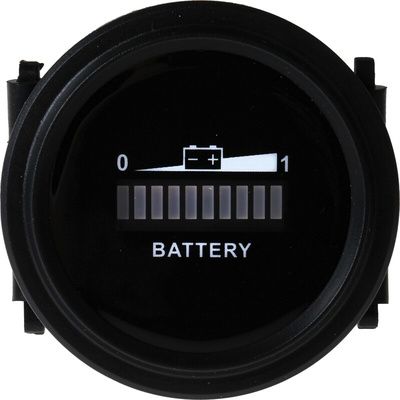

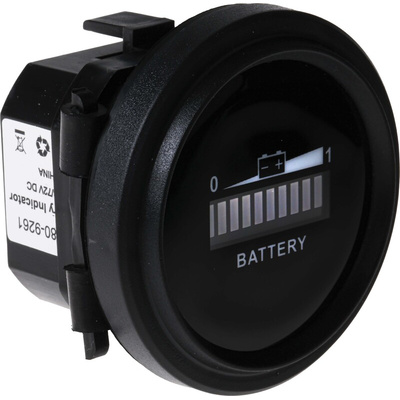

This model of RS PRO digital LED battery meter features a 10 segment LED bar graph display consisting of 1 red, 2 yellow and 7 green LED's allowing results to be displayed quickly and effectively in real time. This model is designed to fit a standard panel cut-out and has an operating voltage of 12/24V, 36V, 48V and 72V. This digital battery meter features a wide operating temperature of -40℃ to + 85℃, allowing for tests to be carried out on a variety of applications.

Features and Benefits

• Compact size allows the meter to be fitted to confined spaces
• LED flash for low and high charge warning
• 10 segment LED bar graph display to illustrate results clearly and effectively
• No moving parts mean the meter operates silently
• Wide operating temperature range
• Fits standard panel cut-out

What type of application is this digital battery meter suitable for?

Battery Meters are used in a number of applications, such as in conjunction with an electric vehicle battery, as it allows the user to easily display and identify the remaining battery life of the device. Other examples where digital battery meters are often found are in medical devices, golf cars, electric cars, cleaning equipment and more.

How do you read digital panel battery meters?

Once connected to the relevant application the battery level can be assessed via displayed results on the LED or LCD panels. An LED display is ideal for a glance or quick observation whereas LCD designs allow digits to be clearly seen in bright/outdoor environments.

Common Applications

• Golf cars
• Commercial cleaning equipment
• Mobility aids
• Electric bicycles
• Medical Devices
