MTL15PD, John Drummond Voltage Indicator & Proving Unit Kit 3.5mA 700V ac, Kit Contents 1 Long Angled Prod, 1 L-Shaped Prod and

Drummond MTL15PD Voltage Indicator & Proving Unit Kit 3.5mA 700V ac, Kit Contents 1 Long Angled Prod, 1 L-Shaped Prod and Test Lamp

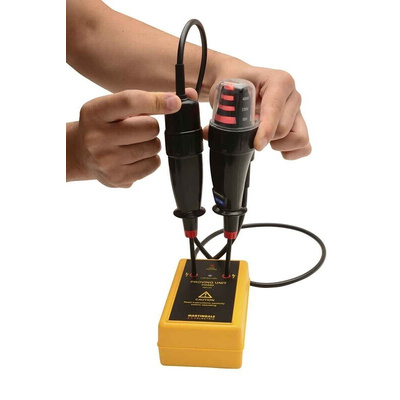

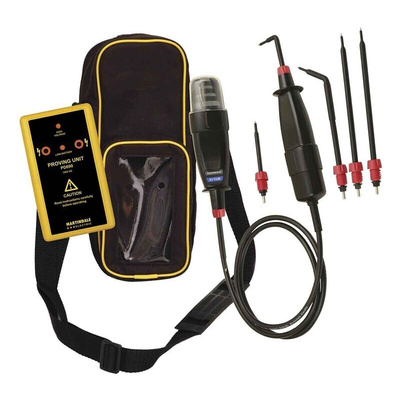

The John Drummond test lamp and proving unit includes an MTL15 test lamp coupled with a PD690 proving unit and the TC69 combination carry case. Safe electrical work requires the use of a voltage indicator or test lamp that has been proved with a proving device before and after use. This TC69 soft carry case ensures that your proving device is always on hand and provides the simplest solution for implementing safe isolation practices for electrical test equipment. For convenience and to save time, the proving unit can be used without having to remove it from the case. The PD690 voltage and power output are matched to the MTL15 to illuminate all voltage bands and prove the test lamp is functioning correctly. The 1.5V alkaline batteries are required for the power supply to the proving unit.

Features and Benefits

• Four illumination bands up to 690V
• 1000V CAT IV safety rating

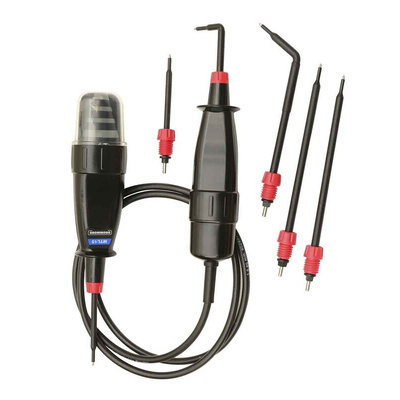

• Right angled and straight GS38 compliant probes
• High intensity long life LED indication
• 360° viewing angle

Applications

• Wind turbines installations
• Energy intensive process industries
• High power variable speed drives
• UPS systems

Certifications

• IP64 rated
• BS EN61010
