Recom Switching Power Supply, RAC02-3.3SGA, 3.3V dc, 500mA, 2W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

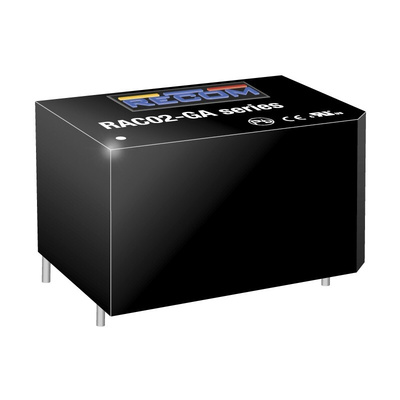

RECOM Switching Power Supply, 500mA Output Current, 2W Power Rating - RAC02-GA Series - RAC02-3.3SGA

Need a voltage-conversion solution you can mount directly on a PCB? Slot this RECOM switching power supply into place. It accepts a wide input voltage range from 85 to 264V AC and delivers an output of 3.3V DC to provide steady power for your application. Its compact dimensions of 33.7 (L) x 22.2 (W) x 19mm (D) mean it's a cinch to install on a busy circuit board. With a wide operating temperature range between -25°C and +80°C, it handles industrial conditions without wilting.

Features & Benefits

• Continuous SCP and OCP mechanisms minimise the risk of damage from power surges
• Typical 200ms start-up time means it doesn't keep you waiting
• Encapsulated housing provides protection against contamination and impacts

Applications

• Telecommunication networks
• Scientific laboratories
• Industrial automation

How much power does this RECOM switching device consume in standby mode?

This switching power supply has a no-load power consumption of less than 250mW, so very little power is used when the device isn't active.

How many outputs does this switching device have?

This RECOM switching power supply has a single output, meaning it's a straightforward option that can power one circuit at a time.

Datasheet
