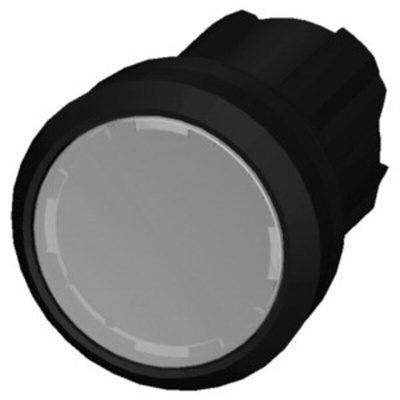

3SU1001-0AA60-0AA0, Siemens Illuminated White Push Button Head - Latching, 3SU1 Series, 22mm Cutout, Round

Siemens Pushbutton

The Siemens SIRIUS ACT illuminated pushbutton has a 22mm mounting diameter with a round flat white body with latching. The actuating element is made from a plastic material. It has a plastic, white-coloured standard front ring.

Features and Benefits

• Compact in size
• Operating temperature ranges between -25°C and 70°C
• Push-to-release mechanism contact type

Applications

• Factories
• Industries
• Power plants
• Traction

Certifications

• CE certified
• CSA
• DIN EN 61373
• EAC
• IEC 60068-2-27
• IEC 60068-2-6
• IEC 60721
• IP66 rated
• IP67 rated
• IP69 rated
• IP69K rated
• NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 rating
• UL listed
