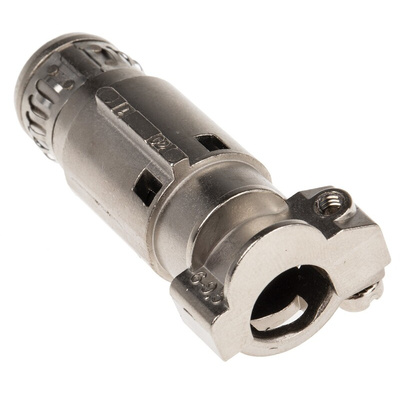

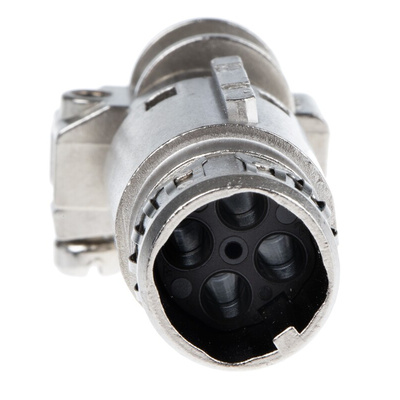

44423231, Lapp Shielded Module, MHB Series 4 Way, For Use With Connectors

EPIC Contact Holder

From Lapp, these contact holder modules are for use with Epic MH Bus connector system kits, and hold four crimp terminating contacts. They are a shielded module for data and signal transmission, and are mateable with market standard connectors.

Features and Benefits

• Shielded module for data and signal transmission.
• Usable for Ethernet CAT.5e
• Crimp connection for permanent vibration proof contact
• The mix of different functions in one plug guarantees high flexibility

Applications

Due to their versatility and durability, these connectors can be used in many applications, such as;

• Mechanical engineering
• Robotics industry
• Plant engineering
• Renewable energy
• Railway applications / vehicle construction

Accessories

These Epic Bus Contact Holders are designed to be used with compatible Modules and Contacts.

Mating Parts

• 180-9542 is a Male EPIC MHS Bus PIN Contact Holder
• 180-9543 is a Female EPIC MHB Bus PIN Contact Holder

Modules

• 180-9540 is a Male 2 Way Module
• 180-9541 is a Female 2 Way Module

Contacts

• 180-9561 is a Male EPIC MH 10 sqmm D=8.0 Contact
• 180-9562 is a Female EPIC MH 10 sqmm D=8.0 Contact
• 180-9563 is a Male EPIC MH 16 sqmm D=8.0 Contact
• 180-9564 is a Female EPIC MH 16 sqmm D=8.0 Contact
• 180-9565 is a Male EPIC MH 25 sqmm D=8.0 Contact
• 180-9566 is a Female EPIC MH 25 sqmm D=8.0 Contact
• 180-9567 is a Male EPIC MH 35 sqmm D=8.0 Contact
• 180-9568 is a Female EPIC MH 35 sqmm D=8.0 Contact
• 180-9569 is a Male EPIC MH 1.5 sqmm D=4.0 Contact
• 180-9570 is a Female EPIC MH 1.5 sqmm D=4.0 Contact
• 180-9571 is a Male EPIC MH 2.5 sqmm D=4.0 Contact
• 180-9572 is a Female EPIC MH 2.5 sqmm D=4.0 Contact
• 180-9573 is a Male EPIC MH 4 sqmm D=4.0 Contact
• 180-9574 is a Female EPIC MH 4 sqmm D=4.0 Contact
• 180-9575 is a Male EPIC MH 6 sqmm D=4.0 Contact
• 180-9576 is a Female EPIC MH 6 sqmm D=4.0 Contact
• 180-9577 is a Male EPIC MH 10 sqmm D=4.0 Contact
• 180-9578 is a Female EPIC MH 10 sqmm D=4.0 Contact
