6GK5004-1GL10-1AB2, Siemens Data Acquisition, 4 Channel(s)

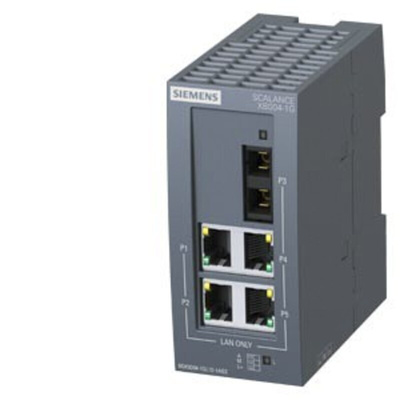

Siemens Data Acquisition Industrial Ethernet Switch, 1000Mbps Maximum Transfer Rate, 0.52A Consumed Current - SCALANCE Series - 6GK5004-1GL10-1AB2

For seamless communication between devices in your workplace, use this industrial Ethernet switch from Siemens. It's equipped with four RJ45 ports, as well as an SC channel to enable data transmission on fibre-optic networks. Thanks to a maximum transfer rate of 1000Mbps, you can use the unit to transmit data quickly, so it's a time-efficient solution for operations like system backups. As an unmanaged device, it eliminates the need for manual configuration – simply plug it into the network and it's ready for use. This versatile option can be used everywhere from the automotive industry to medical facilities.

Features & Benefits

• MTBF of 124 years for reliable long-term performance
• Integrated LED indicators for simple status monitoring and diagnostics
• Vents on the top allow for passive cooling from the atmosphere to prevent overheating
• Supply voltage of 24V DC suitable for low-voltage systems
• 0.6A fuse provides short-circuit protection for safe operation

How do I mount this switch?

You can mount this switch on a wall or clip it onto a DIN rail. Both processes are simple and don't need complex tools – a simple screwdriver will get the job done.
