09200030301, HARTING Han A Heavy Duty Power Connector Housing

Harting Han A Size 3 A Standard Metal Hoods and Housings

Han A size 3 A standard metal hoods and housings with a slim, space saving design. These Han 3 A hoods and housings are made from robust diecast zinc with an RAL 7037 powder coated surface. The Han 3A housings have lever locking systems which provide a secure connection. IP67 protection to IEC 50529 is possible when used with a seal screw (stock number 313-6540). Both the hoods and housings are available with a range of mounting options and cable entry angles. All models are highly reliable and excellent quality.

Features and Benefits

• Slim, space saving design
• Robust diecast zinc construction
• Locking levers for a secure connection
• Range of mounting options and cable entry angles
• IP67 protection using seal screw

Product Application Information

These Han A Size 3 A Hoods are suitable for use in industrial applications

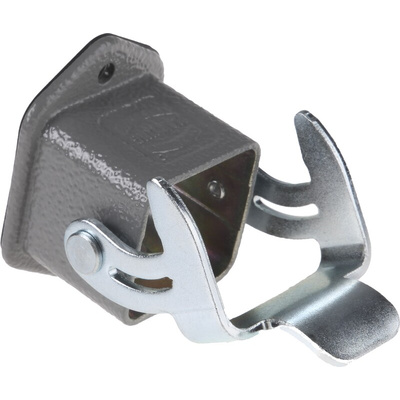

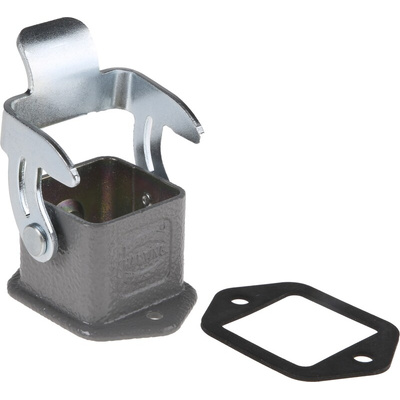

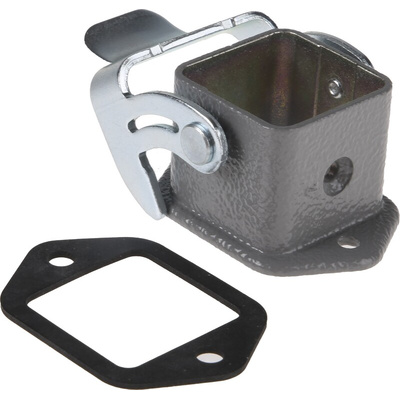

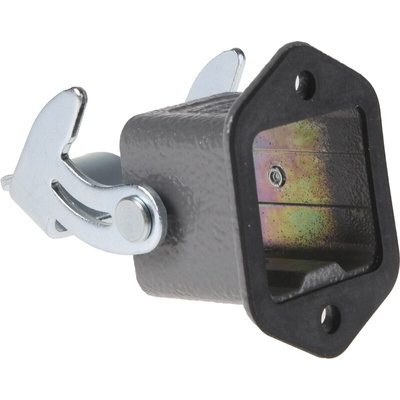

09200030301 Han 3A Metal Housing

Connector housing for industrial connectors with single locking lever for creating a complete power connector. The housing is made from zinc die-cast to provide great reliability and durability.

09200030301 Features:

Bulkhead mounted housing type
Straight
Size 3 A
Single locking lever
Seal material: NBR
Material locking: Steel
IP44 rating,( IP65/IP67 with seal screw RS 313-6450)

Approvals

DNV GL
UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076

Harting Han A Series Size 3 A Hoods and Housings

These hoods and housings are compatible with appropriate inserts from the Han A®, D® including Han®8D(U), and Q series. The 'compatibility' table details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.

Datasheet - 09200030301

Drawing - 09200030301

Guide to Han sizes
