Encoder Kubler 05.2420.1242.1000 1000 ppr Hollow 8 → 30 V dc, Энкодер

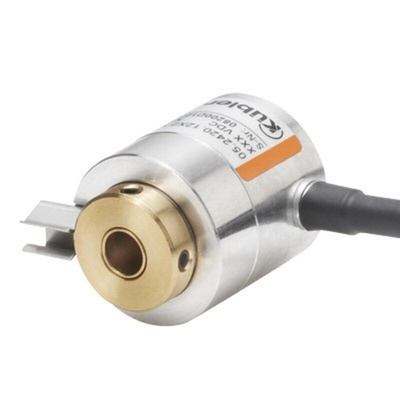

Kubler Incremental Encoder

The Kubler 2420 series incremental encoder has an electrical rating of 8VDC to 30VDC, 50mA and the switching frequency of 160 kHz. This incremental miniature encoder uses optical sensor technology that offers a resolution of up to 1000 pulses per revolution. The encoder diameter is 24mm ideal for use where space is tight.

Features and Benefits

• Cable outlet boasts high degree of strain relief
• Ideally suited for use in small devices
• Mounting type is flange mount
• Operating temperature ranges between -20°C and 85°C
• Output signal type is push-pull
• Robust bearing construction
• Shaft type is hollow
• Short-circuit proof outputs

Applications

• Monitoring or controlling motion parameters such as speed, rate, direction, distance or position

Certifications

• IP50 rated
• IP64 rated
• IP65 rated
