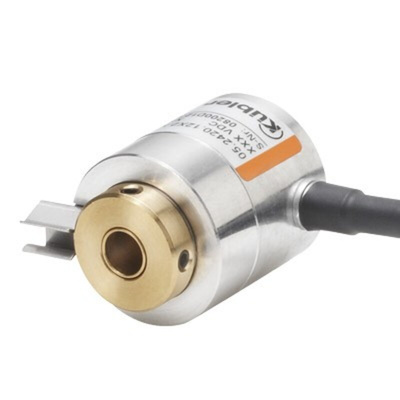

Encoder Kübler 05.2420.1242.1024 1024 ppr Hollow 8 → 30 V dc, Энкодер

1811066
Номер производителя: 05.2420.1242.1024Производитель: Kübler
Цена за шт.
66003.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Kubler Incremental Encoder

The Kubler incremental encoder has an electrical rating of 8VDC to 30VDC with a current rating 50mA and the switching frequency is 160 kHz. This incremental miniature encoder uses optical sensor technology that offers a resolution of up to 1024 pulses per revolution. The diameter of this encoder is 24mm is ideal for use where space is tight.

Features and Benefits

• Cable outlet boasts high degree of strain relief thanks to multiple clamping
• Ideally suited for use in small devices
• Mounting type is flange mount
• Operating temperature ranges between -20°C and 85°C
• Output signal type is push-pull
• Robust bearing construction
• Shaft type is hollow
• Short-circuit proof outputs

Applications

• Monitoring or controlling motion parameters such as speed, rate, direction, distance or position

Certifications

• IP50 rated
• IP64 rated
• IP65 rated

Техническая спецификация
pdfDatasheet
Габаритная ширина:
24 диаметр мм
Диаметр вала:
6мм
Импульсов на оборот:
1024
Напряжение питания:
8 → 30 В пост. тока
Номинал тока:
50 мА
Общая высота:
30.5мм
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-20°C
Серия:
2420
Соединение - тип:
Кабель
Степень защиты IP:
IP50, IP64, IP65
Технология энкодера:
Инкрементальный
Тип вала:
Hollow
Тип выходного сигнала:
Push Pull
Тип монтажа:
Hollow Shaft Flange
Частота переключений:
160 кГц
