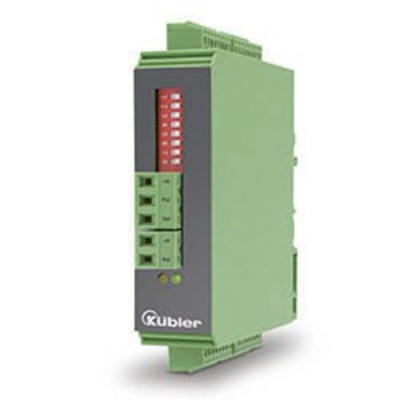

8.SP.2D-2D, Kübler Signal Conditioner, HTL, RS-422 Input, HTL, RS-422, TTL Output, 12 → 30V dc Supply

The signal splitter SP 2D-2D is a universal encoder interface (without potential separation) with 2 incremental encoder inputs for level conversion, distribution as well as contactless and bounce-free switching of encoder signals to the HTL or RS422 format. The module can be easily and conveniently mounted in a cabinet on a standard DIN rail

2 pulse inputs in the format A, B, 0 [HTL] or A, /A, B, /B, 0, /0 [RS422].
Input frequency up to 250 kHz for asymmetrical signals and up to 1 MHz for symmetrical signals.
2 control inputs for HTL / PNP signals [10 ... 30 V DC].
2 output channels in the format A, B, 0 [HTL] or A, /A, B, /B, 0, /0 [RS422], separately adjustable for every output.
