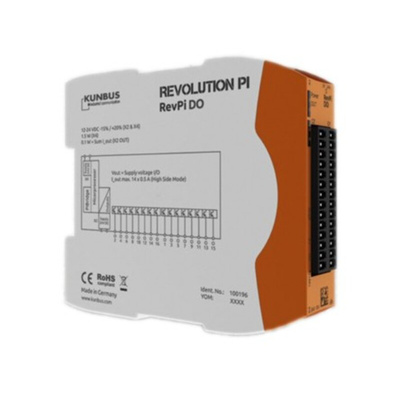

Revolution Pi DO - Powered by Raspberry Pi

The Revolution Pi DO (Digital Output) allows you to transform your base RevPi Core unit into an industrial controller. To do this, you can connect numerous digital I/O modules to it.

The RevPi DO unit is a specialist digital output only version which features 16 digital outputs. The RevPI DO is protected to EN61131-2 standards against interference and will operate between temperatures of -40°C to +55°C.

Features and benefits

• DIN rail mountable (to EN 50022) & compact in size making it perfect to mount several where space restrictions may apply.
• Polycarbonate housing material prescribed to standard EN 61131-3 (resistance to vibration/shock/damp air/high&low temperatures)
• IP20 rated (effective sealing resistant to foreign bodies such as dirt/dust)
• Built-in reverse polarity & overload protection to protect you and your surroundings in case of a fault.
• Compatible with all RevPi base modules, expansion modules & RevPi Gate modules
• DC inputs with a voltage threshold for an industry standard 24 V power supply which is compliant to EN61131-2.
• Low-pass filtering which helps prevent input signal bouncing.
• Outputs not only come through digital signal but also a pulse-width modulated PWM signal

Applications

• Automotive sector
• Energy sector
• Lighting sector
• Home automation

With this digital output module, the RevPi Core can be expanded by 16 digital outputs, thus creating the prerequisite for a small industrial controller. The expansion module is connected to the RevPi core via the top connector. The connector is included in the scope of delivery of this expansion module.
