106875 LS-S02-ZB/X, Eaton Safety Interlock Switch, 2NC , Plastic, Выключатель

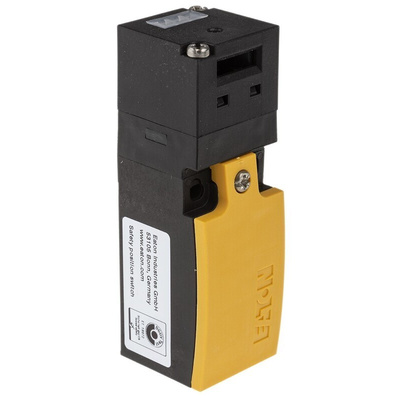

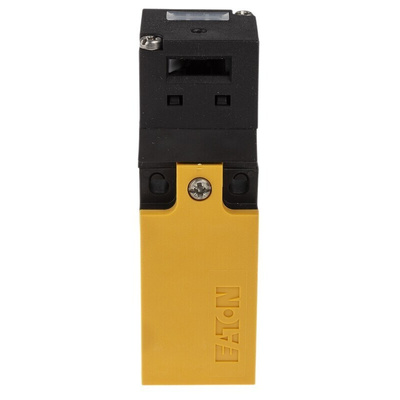

Eaton Safety Interlock Switch, M20 Connection, 415V AC / 220V DC Maximum Voltage - LS4 ZB - 106875 LS-S02-ZB/X

Do you want to be certain that your machine doors will stay closed when your equipment is operating? Turn to this safety interlock switch from Eaton. The compact device keeps doors securely shut on high-inertia rotating machines and other equipment that remains hazardous after the power has stopped. The positive-force opening mechanism adds an extra level of safety by keeping contacts open when there's a short circuit. The unit is easily mounted using standard M20 screw terminal sockets. Thanks to insulated housing, all contacts are safely sealed against water and dust.

Features & Benefits

• Actuator can be mounted in a vertical or horizontal position to suit your setup's needs
• Operating head can be rotated 90° to best fit your equipment
• Working temperature range of -25°C to +70°C for use in demanding environments
• Compact dimensions of 96 (width) x 30 (length) x 33.4mm (height) to save space

Can this safety switch be used around water?

The switch is rated IP66, which means it’s protected against heavy seas and powerful jets of water. It's also completely sealed against dust, so you can rely on it in contaminated environments.

Note

Eaton formerly known as Moeller

Datasheet

Instruction Sheet - Safety Position Switch
