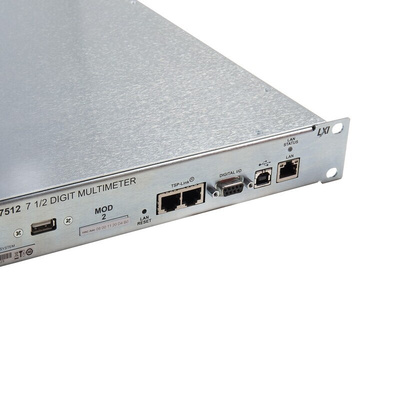

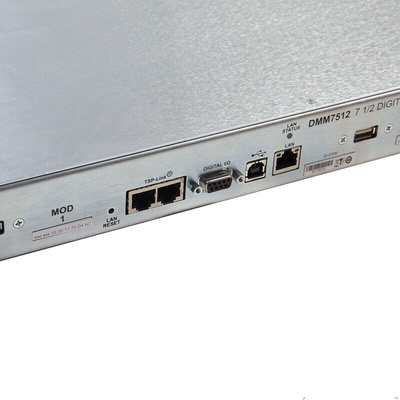

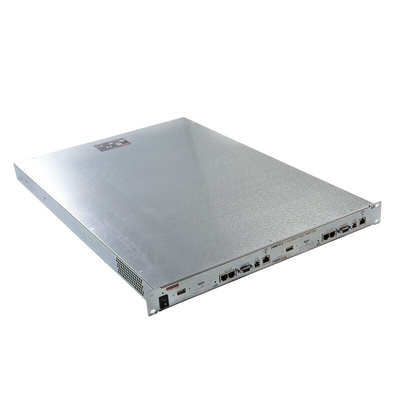

Keithley DMM7512 Dual Channel Rack Mount 7.5 Digital Multimeter, 3A dc Max, Мультиметр

Keithley DMM7512 Dual Channel full Rack 1U wide form factor 7.5 Digit Sampling Multimeter

The DMM7512 7.5 digit multimeter combines two full-function, high accuracy, high sampling speed DMMs into a 1U high, full rack wide form factor chassis. The compact chassis saves rack space in high-instrument density test systems without compromising measurement performance. Each DMM has identical functionality, and they are entirely independent of each other. The DMM7512 consists of two, independent, identical, 7-digit DMM7510 digital multimeters (DMMs) with a few less measurement functions. The two DMM7512 DMMs have the same accuracy, sensitivity, and speed as the DMM7510 so that the DMM7512 can be seamlessly integrated into a test system that previously used DMM7510s. The two DMMs in each DMM7512 have built-in intelligence to execute test programs without PC interaction using its Test Script Processor (TSP®) Technology. In addition, each DMM features a TSP-Link® hardware interface so that one instrument can control other instruments in a master-subordinate configuration.

Features and Benefits

• 1U rack height with no spacing between instruments required
• Two DMMs per instrument
• Control multiple instruments with a test script and TSP-Link to reduce bus communication time and save test time
• Capture current and voltage waveforms with up to 1 Msample/s, 18-bit digitizing
• Synchronize waveform capture using TSP-Link with less than 500 ns latency between initiation of waveform sampling
• Measure low sleep mode current with 1pA DCI sensitivity or 0.1nA current digitization sensitivity

Accessories

Software Updates

Keithley Test Script Builder available at https://www.tek.com/keithley-test-script-builder

Applications

Automotive
Battery Testing
Embedded Design
Power Measurements and Analysis
Manufacturing test/troubleshooting
