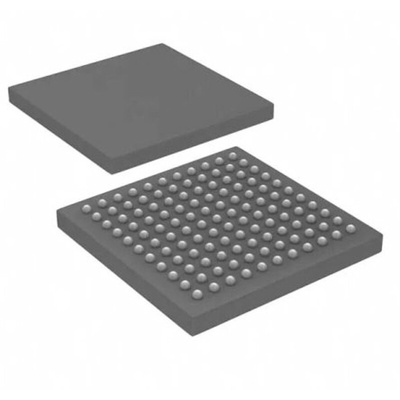

Cypress Semiconductor CYUSB3014-BZXC, USB Controller, 5Gbit/s, USB 2.0, 1.2 V, 121-Pin BGA, Контроллер

Universal serial bus (USB) integration
High-speed On-The-Go (HS-OTG) host and peripheral
compliant with OTG Supplement Version 2.0
Thirty-two physical endpoints
General Programmable Interface (GPIF™ II)
Programmable 100-MHz GPIF II enables connectivity to a
wide range of external devices
8-, 16-, 24-, and 32-bit data bus
Up to16 configurable control signals
Fully accessible 32-bit CPU
ARM926EJ core with 200-MHz operation
512-KB or 256-KB embedded SRAM
Additional connectivity to the following peripherals
SPI master at up to 33 MHz
UART support of up to 4 Mbps
I2C master controller at 1 MHz
I2S master (transmitter only) at sampling frequencies of
8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz
Selectable clock input frequencies
19.2, 26, 38.4, and 52 MHz
19.2-MHz crystal input support
Ultra low-power in core power-down mode
Less than 60 μA with VBATT on and 20 μA with VBATT off
Independent power domains for core and I/O
Core operation at 1.2 V
I2S, UART, and SPI operation at 1.8 to 3.3 V
I2C operation at 1.2 V to 3.3 V
Package options
121-ball, 10- ´ 10-mm, 0.8-mm pitch Pb-free ball grid array
(BGA)
EZ-USB® Software Development Kit (SDK) for code development of firmware and PC Applications
Includes RTOS Framework (using ThreadX Version 5)
Firmware examples covering all I/O modules
Visual Studio host examples using C++ and C#
SuperSpeed Explorer Board available for rapid prototyping
Several accessory boards also available:
Adapter boards for Xilinx/Altera FPGA development
Adapter board for Video development
CPLD board for concept testing and initial development
