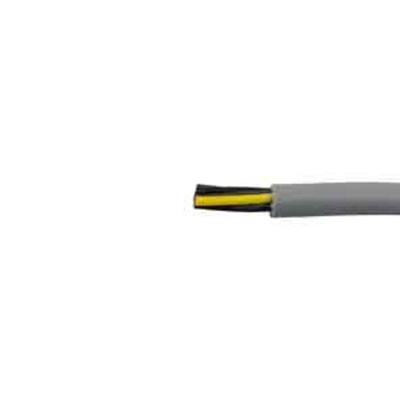

470125YY GE321, Alpha Wire Control Cable, 12 Cores, 0.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, Кабель

Alpha Wire Pro-Met Control Cable, 0.5mm, 50m, Grey PVC Sheath

This Pro-Met series control cable is designed to deliver reliable operation. The cable has a round structure which makes it easy to install, seal and route, resulting in high productivity and fewer errors. This industrial cable is constructed with an inner grey PVC sheath, which allows for a high degree of flexibility. Also, the cable meets the required regulations and standards for safety purposes.

Features and Benefits:

•\tThe cable is UV resistant preventing damage from heat
•\tIt has high resistance to oil making it flexible for various applications
•\tThe temperature range is dynamic and varies between -30 to 70°C
•\tVoltage Rating to 300/500 VRMS meaning less carbon emissions and reduced carbon footprint
•\tThe minimum bend radius of the cable is 10x the cable diameter
•\tThe PVC sheath makes the cable materials fire resistant and environmentally friendly

Applications:

•\tDomestic use (sheds, garden office)
•\tIndustrial sites (warehouse, back office)
•\tElectrical operating tools
•\tConstruction lighting and machines

What is the dimension of the conductor strands and the diameter?
The strands of the wire are 20/.177mm² and the outer diameter is 9.23mm.

What is the conductor material and its resistance?
The conductor of the control cable is copper, and its resistance is 39 Ω/Km @20°C, Max.
