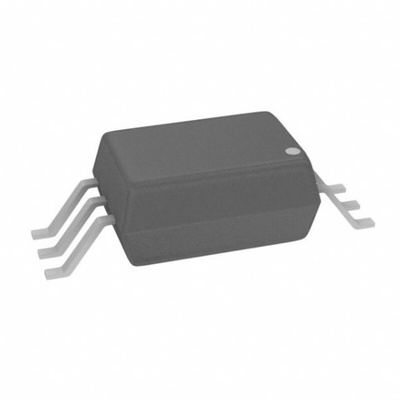

FOD8314TR2, ON Semiconductor Optocoupler, Max. Forward 1.8 V, Max. Input 16 mA, 6.81mm Length, Surface Mount Mounting Style, Оптопара

FOD8314T - 8 mm Creepage and Clearance Distance, and 0.4 mm Insulation Distance to Achieve Reliable and High-Voltage Insulation
1.0 A Output Current Driving Capability for Medium-Power IGBT/MOSFET
– Use of P-Channel MOSFETs at Output Stage Enables Output Voltage Swing Close to Supply Rail
20 kV/μs Minimum Common Mode Rejection
Wide Supply Voltage Range: 15 V to 30 V
Fast Switching Speed Over Full Operating Temperature Range
– 500 ns Maximum Propagation Delay
– 300 ns Maximum Pulse Width Distortion
Under-Voltage Lockout (UVLO) with Hysteresis
Extended Industrial Temperate Range: -40°C to 100°C
AC and Brushless DC Motor Drives
Industrial Inverter
Uninterruptible Power Supply
Induction Heating
Isolated IGBT/Power MOSFET Gate Drive
