Sauter FH 500UK Force Gauge 2000Hz RS232, Range: 500N, Resolution: 0.1 N, Датчик силы

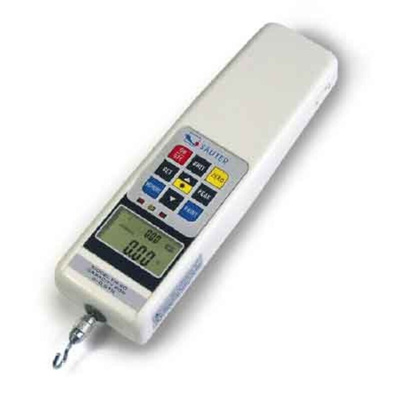

Sauter Force Gauge

The Sauter digital force gauge has a range of up to 500N. This gauge belongs to the Sauter FH series. It is a universal digital force gauge for tension and compression tests. This is lightweight and easy to carry. The gauge unit comes with rechargeable batteries and a charger with a hard carrying case.

Features and Benefits

• Turnable display with backlight
• Can be mounted on all the manual test stands
• Digital force gauge with an internal sensor
• Data interface RS-232 is included
• Standard attachments: as shown below, extension rod: 90mm
• Delivered in a hard carrying case
• Selectable measuring units: N, lb and kg
• Real-time or peak hold mode to observe transients or capture peaks
• Function to set limits, programming of maximum/minimum, in pull and push direction, with an output of audible and optical signal
• Ideal mode for efficient and accurate testing of standard parts
• Auto power OFF
• Mini statistics kit: Calculates the average result from up to 10 stored single results

Applications

• Material force testing
• Quality control and assurance
• Spring testing
• Opening force testing
• Switch force activation
• Medical field
