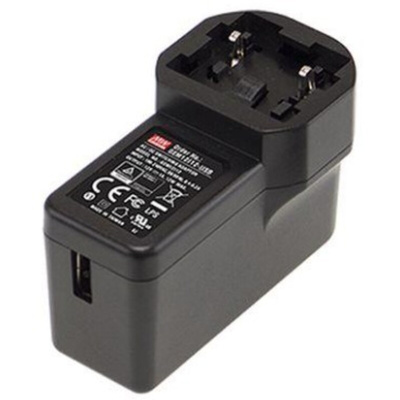

GEM12I05-USB, MEAN WELL 12W Plug-In AC/DC Adapter 5V dc Output, 2.4A Output

GEM 12I is a highly reliable, 12W wall-mounted style single-output green medical adaptor series, which is compact and convenient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, UK type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. GEM 12I accepts the input range from 80VAC to 264VAC that it can satisfy the demands for various types of medical electrical devices. The circuitry design has an ultra low leakage current (<100μA), fitting medical devices in direct electrical contact with the patients. With the working efficiency up to 87% and the extremely low no-load power consumption below 0.075W allowing the adaptor to save the energy when it is under either the operating mode or the standby mode. The flame retardant plastic case can effectively prevent users from electric hazard.

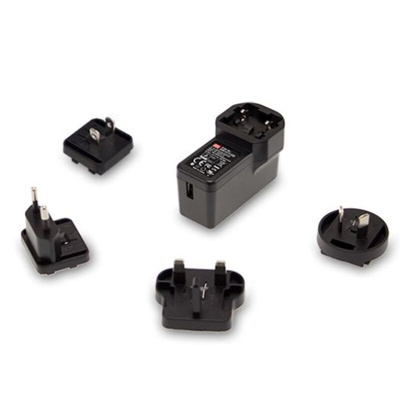

Interchangeable AC plugs (plug kit sold separately)
Extremely low leakage current
No load power consumption< 0.075W(<0.1W for 18V/48V)
-20∼+70°C wide range working temperature
Protections:Short circuit/ Overload/ Over voltage
Fully enclosed plastic case
3 years warranty
Applications:
Blood glucose meter
Blood pressure meter
Nebulizer
Inhaler
Portable medical device
Sleep apnea devices

Datasheet
