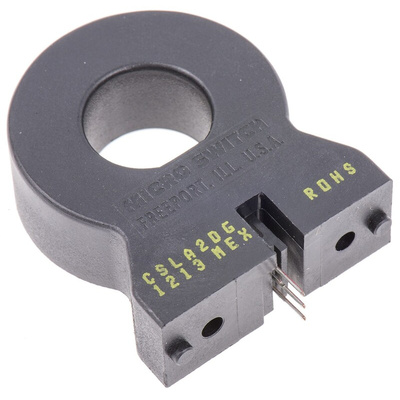

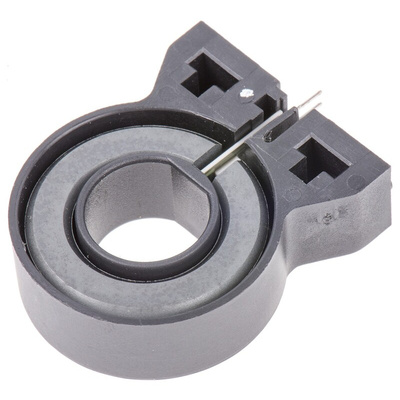

CSLA2DG, Honeywell CSLA Series Current Transformer, 150A Input, 150:1, 15.7mm Bore, 6 → 12 V dc, Преобразователь тока

Honeywell CSLA Series LOHET II Current Sensors

Linear current sensors from Honeywell incorporating LOHET II Hall effect transducers. These devices have increased temperature stability and 10 times less temperature drift than the LOHET I types and produce a ratiometric output voltage that varies from 19% to 81% of the supply voltage as the magnetic field varies within the rated flux range. They have push-pull outputs which are capable of sourcing and sinking current.

• AC or DC current sensing with linear output
• Fast response time
• Output voltage isolated from input
• Maximum current limited only by conductor size
• Simple through-hole design
• Operating temperature range -25 to 85°C

Honeywell Current Transformer, Open-Loop Current Sensor, 6 to 12V DC Supply Voltage - CS Series - CSLA2DG

Use this open-loop current sensor from Honeywell to monitor currents in your transformer. The unit comes pre-assembled for ease of mounting onto your PCB. Push-pull outputs help to protect against short circuits and reverse polarity for increased electrical safety. The PET housing is resistant to moisture and wear for durability in harsh environments.

Features & Benefits

• Fast response time of 3ms for rapid results
• Wide operating temperature range between -25°C and +85°C for use in harsh conditions
• Built-in temperature compensation to ensure reliable results
• Senses AC and DC currents for versatility

Applications

• Electrical installations
• Electricity distribution panels
• Manufacturing equipment

What's the supply voltage of this sensor?

This sensor has a supply voltage of 6 to 12V DC, making it suitable for use in low-power systems.
