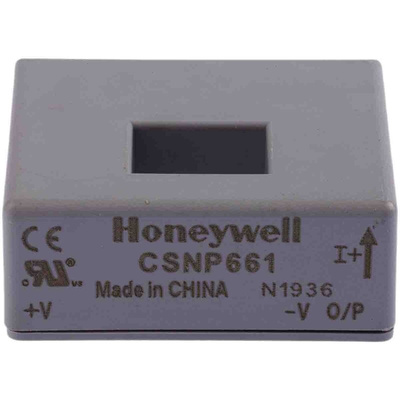

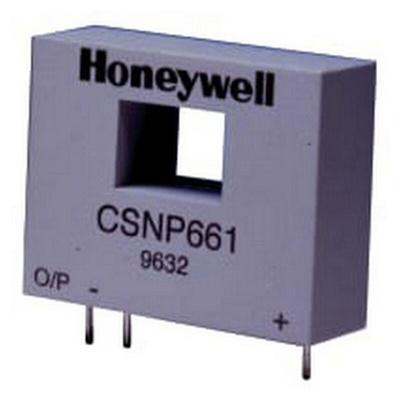

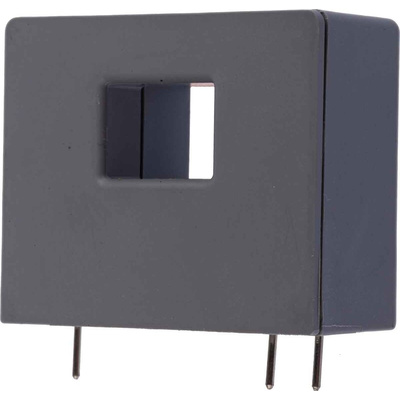

CSNP661, Honeywell CSNP Series Current Transformer, 90A Input, 90:1, 50 mA Output, 12 → 15 V dc, Преобразователь тока

High current & Multi-range (AC & DC)

Flexible alternative to the current shunt or transformers for the isolated measurement of a.c. or d.c. currents. Both types have plastic Bayblend KU1468 UL94-VO cases.,High current types have current sensors based on the hall effect and null balance method. The output is the balancing current which is a perfect image of the primary current reduced by the number of secondary turns at any time. It can be expressed as a voltage by passing it through a resistor.,Multi-range types are similar devices but with a wider measuring range. Up to 36A is possible using 5 primary turns and up to 43A using 7 primary turns.

Honeywell Current Transformer, 12 to 15V DC Supply Voltage, +0.5% Accuracy - CSNP Series - CSNP661

Use this current transformer from Honeywell to monitor currents in your industrial applications. It has a current sensing range of +90A and can detect both AC and DC currents for versatility. This unit has pins for through-hole mounting to your PCB, so you can create a permanent vibration-proof connection. Thanks to its thermoplastic housing, it's insulated to protect you from electrical hazards, ensuring safe installation and operation.

Features & Benefits

• Quick response time of less than 0.5μs for optimal performance
• Broad operating temperature range of -40°C to +85°C for use in demanding conditions
• Accuracy of +0.5% to ensure precise results

Applications

• Electrical panels
• Power distribution systems

What's the operating voltage of this current transformer?

This current transformer has an operating voltage range of 12 to 15V DC for use in low-power systems.
