VT8-1000, FLIR VT8 Clamp Meter, 200A dc, Max Current 200A ac CAT III 1000V

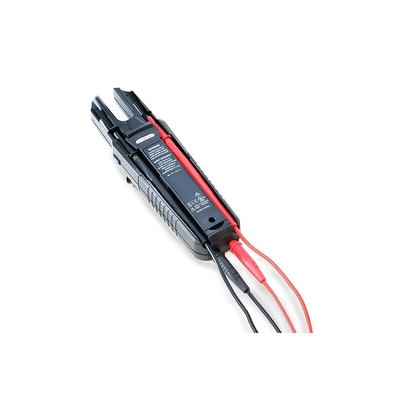

FLIR VT8-1000 Voltage, Current and Continuity Tester

From FLIR, the true RMS VT8-1000 clamp meter with a 200A /1000V measuring range. The superior instrument is perfect for electricians, technicians and engineers for verification and troubleshooting. Typically, within the commercial and light industrial sectors.

Ergonomically designed, the clamp meter is comfortably operated with one hand. With a 15.5mm fixed jaw clamp, amperage measurements are easily taken in tight spaces, the optimised jaw design also caters for larger diameter cables. A handy built-in test lead holder on the back of the instrument safely stores leads when not in use.

With built-in bright LED worklights, the FLIR VT8-1000 clamp meter provides extra illumination for environments with very little or no light. Readings are clearly visible on the large multifunction backlit LCD display, ideal for dark cabinets and panels.

Compact and lightweight the FLIR VT8-1000 clamp meter is extremely easy to operate. Robust, sturdy and built to last this professional all-in-one tool is the essential instrument for every engineer.

Features and Benefits

• AC/DC voltage range 0 to 1000V


• AC/DC current range 0 to 200 A


• True RMS


• Resistance 60.00MΩ, ± (1.5%)


• Capacitance 600μF, ±4%; 6000μF, ±10%


• Continuity check threshold: 10Ω to 100Ω


• Non-Contact Voltage Detector (NVC)


• Additional measurement functions: DCA zero, relative mode (AC/DC voltage, AC current, and capacitance), data hold


• Bright white LED work lights


• 6000-count backlit LCD display


• Over range indication displayed ’OL’ or ’-OL’


• Auto power off after 15 minutes


• Low battery indication


• Drop tested to 2m

Applications

Voltage and continuity testers are electrical test tools widely used by service engineers, technicians and electricians to safely measure electrical equipment is working correctly. The instruments can help to diagnose and troubleshoot. Some of the most common applications are

• Electrical energy


• Facility maintenance and management


• Home inspections


• Utilities

Optional Extras

• 123-6703 is for the FLIR TA15 Soft Case


• 187-4892 is for the FLIR TA70 CAT IV Insulated Alligator Probes


• 193-2382 is for the FLIR TA83 Replacement Test Leads
