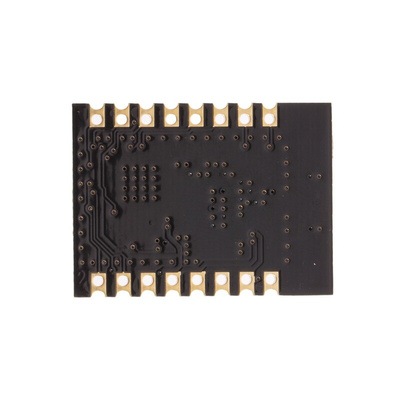

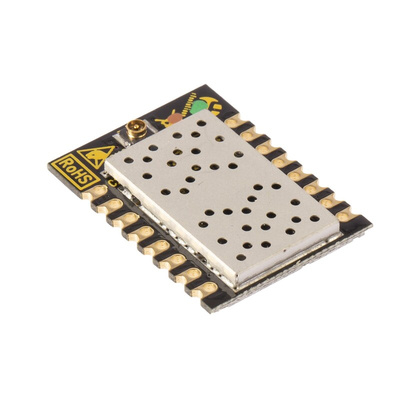

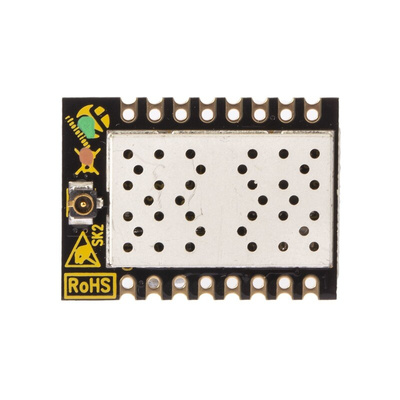

LAMBDA-9S, RF Solutions, LoRa Module Transceiver 915MHz, -130dBm Receiver Sensitivity, Модуль

RF Solution Module

The RF Solutions LAMBDA-9S series SMT package transceiver module is operated at 915MHz frequency. It has an electrical rating between 1.8V and 3.3V. This is an extremely high performance, cost-efficient radio module. This module including crystal, RF changeover switch and impedance matching network and track layout provides a simple digital interface and direct antenna connection.

Features and Benefits

• 127dB dynamic range RSSI
• 157dB maximum link budget
• 89dB blocking immunity
• Automatic RF sense and CAD with ultra-fast AFC
• Built-in bit synchronizer for clock recovery
• Built-in RF switch
• Built-in temperature sensor and low battery indicator
• Bullet-proof front end -12.5dBm
• FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation
• High sensitivity down to -130dBm
• Highly efficient integral impedance matching network
• Integrated LoRa modem semtech SX1272
• Low RX current of 10mA, 100nA register retention
• Package engine up to 256bytes with CRC
• Preamble detection
• Programmable bit rate up to 300kbps
• Provides full functionality of the RFIC
• Small form factor-23mm x 20mm
• Upto 16km range

Certifications

• IIP3 rating

Datasheet LAMBDA-9S
