LAMBDA62-8D, RF Solutions, LoRa Module Transceiver 868MHz, -148dBm Receiver Sensitivity, Модуль

RF Solution Module

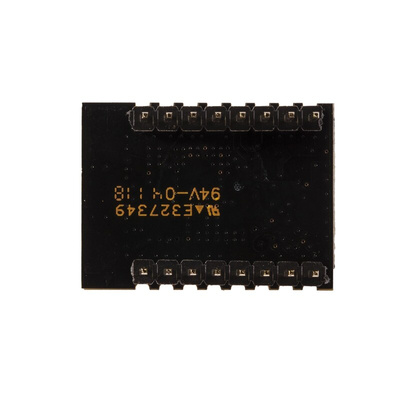

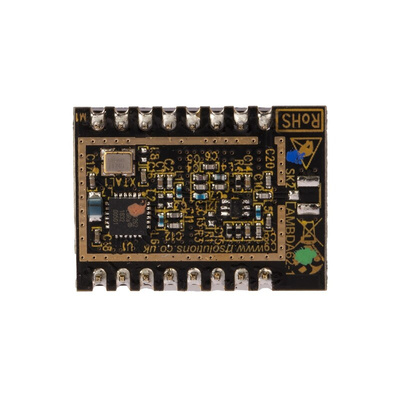

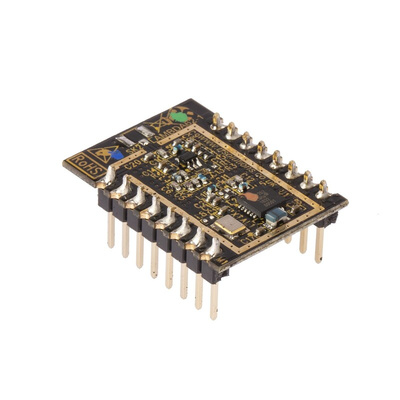

The RF Solutions LAMBDA62-8D series DIP package transceiver module is operated at 868MHz frequency. It has an electrical rating between 1.6V and 3.3V. This module is a leading, cost-efficient radio module featuring ultra-long range, spread spectrum communication and high interference immunity within minimal current consumption.

Features and Benefits

• 127dB dynamic range RSSI
• 14dBm high efficiency PA
• 170dB maximum link budget
• 89dB blocking immunity
• Automatic RF sense and CAD with ultra-fast AFC
• Built-in bit synchronizer for clock recovery
• Built-in RF switch
• Built-in temperature sensor and low battery indicator
• Bullet-proof front end -12.5dBm
• High receiving sensitivity down to -148dBm
• Highly efficient integral impedance matching network
• Integrated LoRa modem semtech SX1262
• LoRa, FSK, GFSK, MSK, GMSK, OOK modulation
• Low RX current of 4.6 mA (Lora Operating Mode)
• Packet engine up to 256bytes with CRC
• Preamble detection
• Programmable bit rate up to 300kbps
• Provides full functionality of the RFIC
• Small form factor 23mm x 20mm
• Transmission of 22dBm at 118mA constant RF output
• Upto 20km range

Certifications

• IIP3 rating
