CD10.241, PULS CD DC-DC Converter, 24V dc/ 10A Output, 18 → 35 V dc Input, 240W, DIN Rail Mount, +70°C Max Temp -25°C Min, Преобразователь

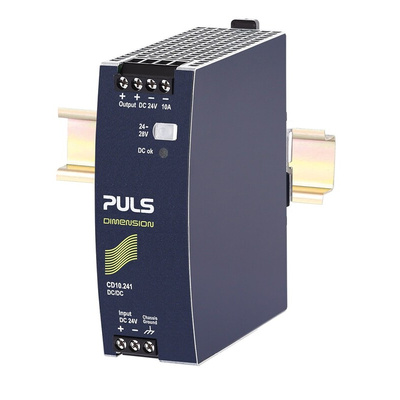

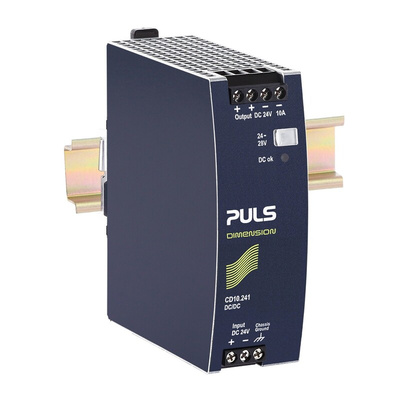

PULS Isolated DC-DC Converter DIN Rail Mount

The PULS is a DIN-rail mountable DC/DC converter of the DIMENSION series. It provides a floating, stabilized and galvanically separated SELV/PELV output voltage. The output voltage provided by it is 24VDC and the input voltage is also 24VDC. The CD-Series is a part of the DIMENSION power supply family. The CD-Series includes all the essential basic functions. This device has a power reserve of 20% included, which may even be used continuously at temperatures up to 45°C. High immunity to transients, power surges, low electromagnetic emission and a large international approval package for a variety of applications make this unit suitable for almost every situation.

Features and Benefits

• 24VDC input
• Isolated 24VDC output
• High-efficiency 94.2%
• Width only 42mm
• Small size and the wide operational temperature range
• Full power between -25°C and 60°C
• Soft-start function
• Minimal inrush current surge
• Reverse input polarity protection
• 3-year warranty

Applications

• Telecommunication equipment
• Industrial equipment
• Consumer electronics

Certifications

• UL approved
• CE certified

CD10.241 Datasheet
