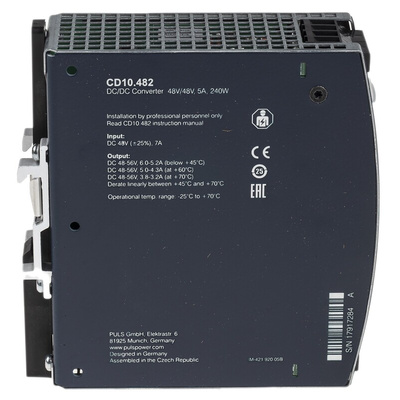

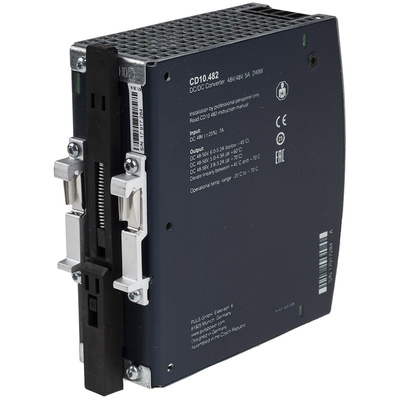

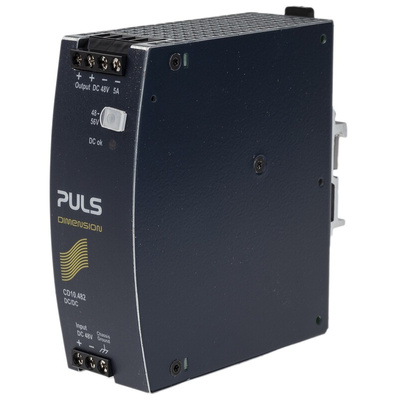

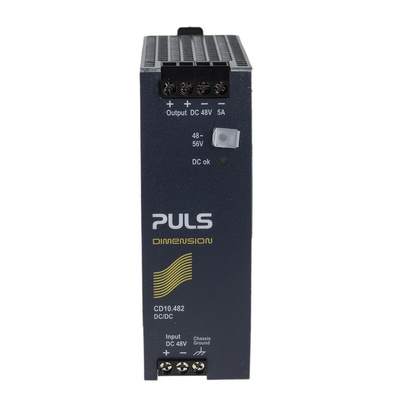

CD10.482, PULS CD 240W Isolated DC-DC Converter DIN Rail Mount, Voltage in 36 → 60 V dc, Voltage out 48V dc, Преобразователь

1812499
Номер производителя: CD10.482Производитель: PULS
Цена за шт.
80778.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

PULS Isolated DC-DC Converter DIN Rail Mount

The PULS is a DIN-rail mountable DC/DC converter of the DIMENSION series. It provides a floating, stabilized and galvanically separated SELV/PELV output voltage. The output voltage provided by it is 48VDC and the input voltage is also 48VDC. The CD-Series is a part of the DIMENSION power supply family. The CD-Series includes all the essential basic functions. This device has a power reserve of 20% included, which may even be used continuously at temperatures up to 45°C. High immunity to transients, power surges, low electromagnetic emission and a large international approval package for a variety of applications make this unit suitable for almost every situation.

Features and Benefits

• 48VDC-Input
• Isolated 48VDC output
• High-efficiency 95.1%
• Width only 42mm
• Small size and the wide operational temperature range
• Full power between -25°C and 60°C
• Soft-start Function
• Minimal inrush current surge
• Reverse input polarity protection
• 3-year warranty

Applications

• Telecommunication equipment
• Industrial equipment
• Consumer electronics

Certifications

• UL approved
• CE certified

Техническая спецификация
pdfDatasheet
Встречающиеся стандарты:
ANSI/UL 61010-2-201, ATEX EN 60079-0, ATEX EN 60079-7, CE Certified, cULus Listed, GL Listed, IECEE IEC 61010-2-201, IECEx IEC 60079-0, IECEx IEC 60079-7, UL 508
Выходной ток:
5A
Глубина:
124мм
Диапазон входного напряжения:
36 → 60 В пост. тока
Длина:
42мм
Количество выходов:
1
Максимальная температура:
+70°C
Минимальная температура:
-25°C
Мощность номинальная:
240Вт
Напряжение выходное:
48В пост. тока
Напряжение изоляции:
1.5кВ пост. тока
Номинальное входное напряжение:
48 В пост. тока
Регулирование нагрузки:
200мВ
Серия:
CD
Тип монтажа:
Крепление на DIN рейку
Ширина:
117мм
Эффективность:
95.1%
