RS PRO Hand Ratcheting Crimp Tool for Wire End Sleeves, 0,14 → 10mm² Wire, Обжимные клещи

RS PRO Janus Ratchet Crimping Tool Kit

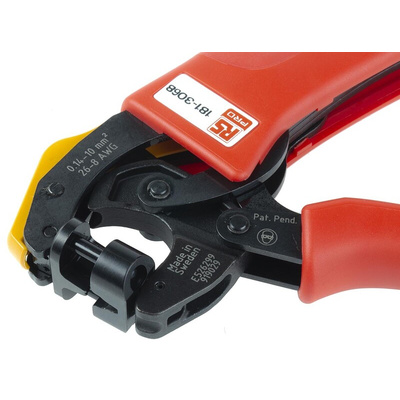

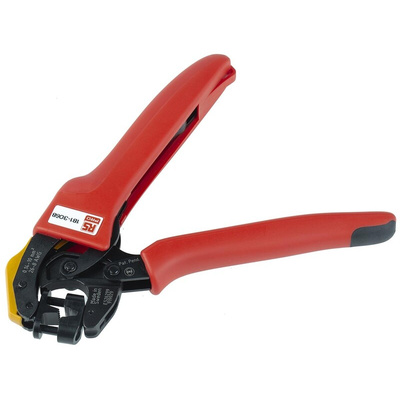

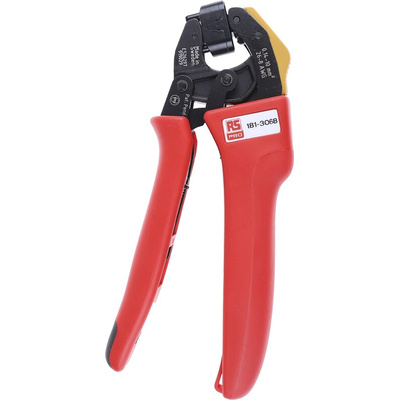

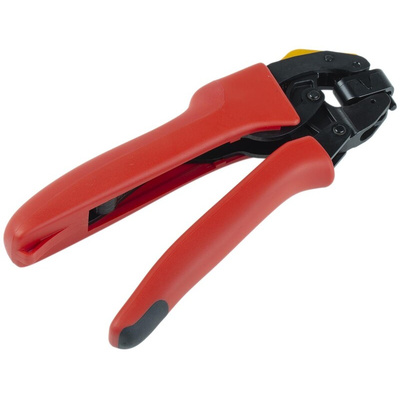

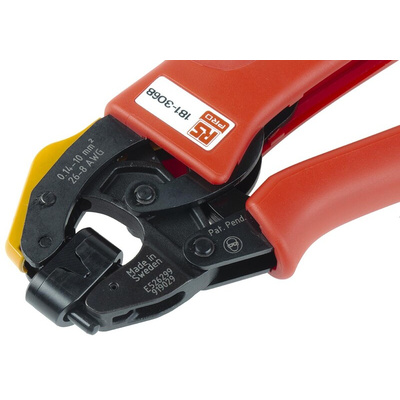

The RS PRO Janus is an ergonomic crimping tool with self-adjusting dies for producing a trapezoid crimp profile on wire ferrules 0.14-10.0 mm²/AWG 26-8. This durable ratchet crimping tool allows cutting, stripping and crimping to be easily achieved with minimal handle force.

Crimping tools are used to join two pieces of metal together by depressing one or both into a crimp and are often used for joining a connector to a cable. A full cycle ratcheting hand tool such as this one ensures optimal crimps and is ideal for insulated cables.

This versatile crimper features rotating dies so that ferrules can be crimped from either side or the front of the tool making it ideal for both bench work and cabinet installation. With a life span of 50,000 cycles, this durable crimp tool ensures a consistent and reliable crimp will be achieved even under tough working conditions and heavy use.

Features and Benefits

• Ergonomic soft grip handles for comfort
• Hole in the handle to allow a safety strap to be attached
• Ratchet release mechanism to clear mis-crimps and obstructions
• Full cycle crimp mechanism to ensure consistent, reliable crimp
• Compact design for easy access to wires in confined spaces
• Rotating dies to allow for ferrules to be crimped from either side or the front of the tool

Typical Applications

• Maintenance & repair
• Electrical Installations
• Cable assemblies

What is crimping?
Crimping refers to the bend or deformity of two pieces of metal, such as wire and a connector, allowing them to be joined.

What is the importance of a high-quality crimp?
In order to and maintain the safety and performance of an electrical connection and reduce deterioration, there are a number of key factors that need to be taken into consideration. Things such as selecting the correct terminal, material and stripping the wire correctly will help to ensure a high-quality crimp for the required application.

RS Pro Datasheet
