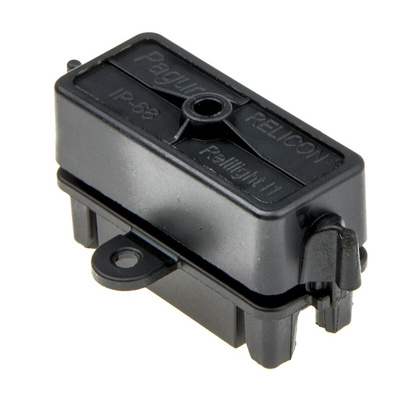

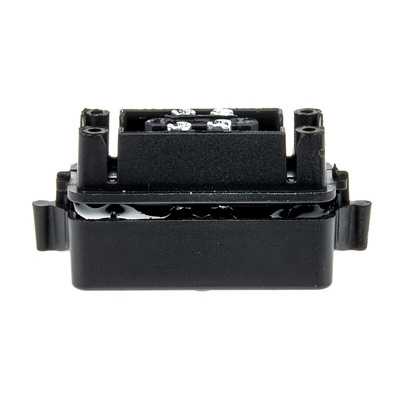

435-01650 Relilight V2.75I1-PA66V0/SI-BK, HellermannTyton Gel Filled Cable Joint, Branch Joint Type , 0.35 → 0.75mm²

HellermannTyton Gel Cable Joint with Relilight Connector

Relilight cable joints are designed for light installations such as LED lighting. Relilight can be used for straight through or as branch joints. Relilight are suitable for jointing on polymeric cables and wires made of PVC, XPLE, PE, EPR and similar materials. Outdoor light installations, underground, submerged, outdoor/ indoor and wiring ducts will benefit from Relilight cable joints.

Features and Benefits

• Two part black moulding shells
• Flame retardant
• RELICON gel insulating properties
• Non toxic gel
• Reopenable
• Easy installation
• UV Resistant
• Ageing resistant
• Weather resistant
• Unlimited storage life
• Provide insulation, sealing and mechanical protection in one step

Standards

UL94 V0, IP68, DIN EN 60998-2-1:2004

Supplied with

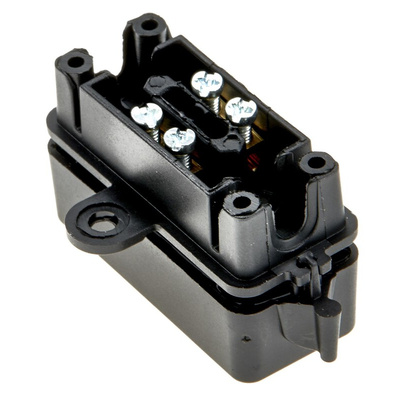

Connector block

HellermannTyton Cable Joint

The HellermannTyton relilight gel cable joints designed for light installations, such as LED lighting. This can be used for low-voltage electrical networks as straight through or as branch joints. The size of the connector block is 2 x 0.35mm² up to 2 x 0.75mm². It is suitable for joining polymeric cables and wires made of PVC, XPLE, PE, EPR and similar material. The moulding shells are made of flame retardant PA 66. The silicone-based RELICON gel in the cable joints provides insulation, sealing and mechanical protection.

Features and Benefits

• Easy to install
• Good insulating properties through the use of RELICON gel
• Non-toxic gel
• Service temperature ranges between -30°C and 130°C
• Reduced workload
• Re-openable
• Resistant to ageing and weather
• Unlimited storage life
• UV-resistant for lighting technology

Applications

• Branch Joint
• Outdoor light installations
• Outdoor/indoor and wiring ducts
• Submerged
• Underground

Certifications

• ELV compliant
• EN60998-2-1:2004
• IP68 rating
• UL94 V-0
