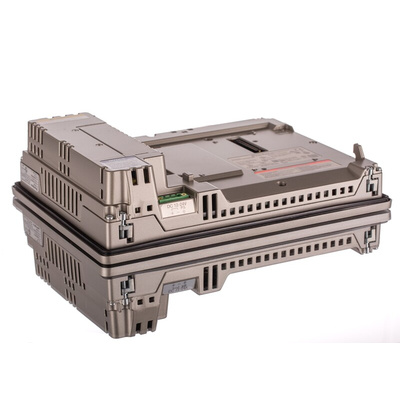

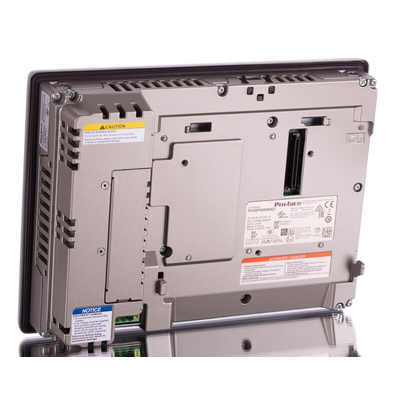

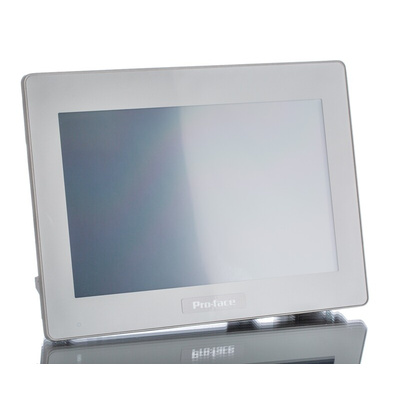

PFXSP5500WAD, Pro-face SP5000 Series TFT Touch Screen HMI - 10.1 in, TFT LCD Display, 1280 x 800pixels, Дисплей

Schneider Electric Pro-Face Touch Screen HMI, 8.5W Maximum Power Consumption, 400cd Maximum Brightness - SP5000 Series - PFXSP5500WAD

Control and configure your industrial equipment with this HMI from Schneider Electric's Pro-Face range. For convenience, it features an analogue resistive film screen that lets you operate it with either your fingers or a stylus. The unit has a high-resolution display of up to 1280 x 800 pixels, so you can be sure of crisp images and high-quality graphics. A white LED backlight means that you can use it in areas with low light. Thanks to a wide display area of 217 (W) x 135.6mm (H), this HMI makes it easy to read essential information.

Features & Benefits

• Power consumption of 8.5W or less for energy efficiency and low heat dissipation
• Light weight of 2.5kg for easy handling during installation
• Broad operating temperature range of 0°C to +60°C for use in challenging conditions
• Voltage endurance of 1000V AC to withstand sudden power spikes without damage
• Conformal coating protects the circuit board from dust and moisture for improved service

Applications

• Robotics systems
• Oil plants
• Manufacturing facilities

Is this HMI dustproof?

Yes, this durable unit's IP67 rating indicates that it's fully protected from dust and can resist immersion in up to 1m of water for 30 minutes.

Datasheet PFXSP5500WAD

Instruction Sheet - PFXSP5500WAD

Brochure - HMI Centric
