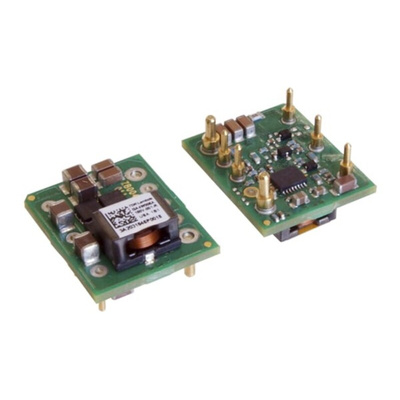

I3A4W008A033V-001-R, TDK-Lambda I3A4W008A033V DC-DC Converter, 3.3 → 16.5V dc/ 8A Output, 9 → 53 V dc Input, 100W, PCB Mount,, Преобразователь

TDK-Lambda (i3A Series) Non-Isolated DC-DC Converters

The i3A converters are ideal for creating additional mid-current output voltages from a single output 12V, 24V, 36V or 48V AC-DC power supply. These 100W step-down converters can accept a wide 9 to 53Vdc input and deliver wide adjustable output voltages of 3.3 to 16.5V at up to 8A or 5 to 30V at up to 4.5A. With efficiencies of up to 98%, the 1/32nd brick format non-isolated converters offer a very cost-effective solution, with minimal derating at high ambient temperatures. The i3A series are suitable for use in medical, communications, industrial, test and measurement, broadcast, and portable equipment.

(Series) Features and benefits:

• Step-down (Buck) Non-isolated POL Converter
• 100W in a 1/32nd brick package
• Very high efficiency up to 98%
• Wide Output Adjustment 3.3 to 16.5V or 5 to 30V
• Minimal External Components Needed
• 3-year manufacturer warranty

(I3A4W008A033V-001-R) Features & Benefits:

• Input Voltage Range of 9 → 53 V dc
• Output Voltage of 3.3 → 16.5V dc
• 96.5% efficiency
• 0.7% Load regulation

i3A Series Data Sheet
