Aim-TTi TGF4162 Function Generator, 1μHz Min, 160MHz Max, FM Modulation, Variable Sweep, Генератор функций

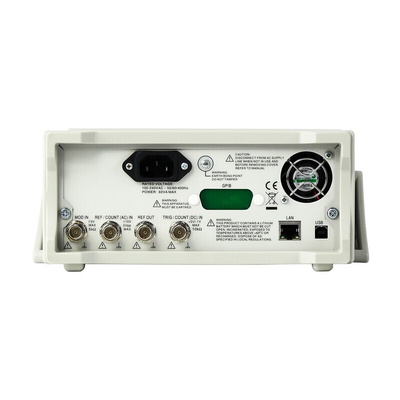

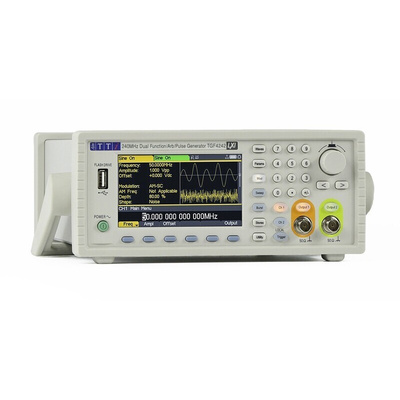

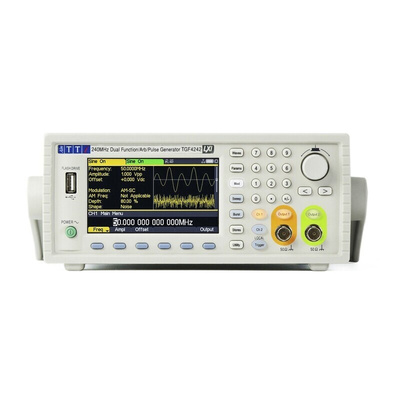

Aim-TTi TGF4000 Series Performance Function, Arb, Pulse Generator

The TGF4000 series is the latest function/arbitrary generator series from Aim-TTi offering class-leading performance and unrivalled value for money.A frequency capability of up to 240MHz is combined with two identical full performance channels that can operate as independent generators or in coupled or tracking modes. Precise channel to channel phase control with a resolution of 0.0010 is provided.A wide range of built-in waveforms is included and custom arbitrary waveforms can be used at sample speeds up to 800MSa/s and replay rates up to 80MHz. PC based arbitrary waveform generation and editing software is provided.High resolution, low jitter pulses can be generated up to 100MHz as can wide bandwidth white noise. An extensive array of modulations is provided using internal and external sources. Gated, burst and sweep modes can use internal or external trigger sources.

Features and Benefits

• 0.001mHz to 240MHz (TGF4242), 160MHz (TGF4162) , 80MHz (TGF4082) or 40MHz (TGF4042) sine frequency range


• High sine wave purity with low phase noise and jitter, audio band THD down to 0.05%


• Resolution of up to 15 digits or 1μHz, high stability TCXO timebase


• Inter-channel phase offset of -3600 to +3600 with 0.0010 resolution


• 1mHz to up to 100MHz Pulse generation with 100ps width resolution, <30ps jitter, and independently variable rise/fall times


• Arbitrary waveforms of 14-bits / 400MSa/s (TGF4042 & TGF4082) or 16-bits / 800MSa/s (TGF4162 & TGF4242)


• Waveform Manager Plus for Windows, editing software included


• Comprehensive internal/external digital and analog modulation set including Sum* modulation


• 125MHz frequency counter/timer with five measurement modes


• Programmable via USB and LAN (LXI) interfaces; GPIB optional

Datasheet- TGF4000 Series
