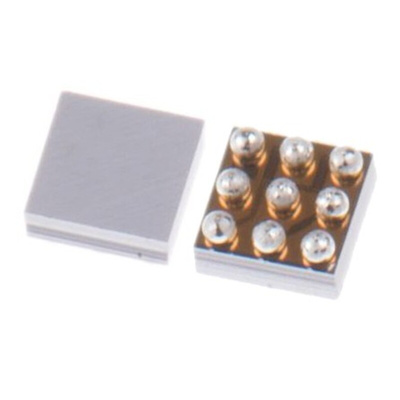

Cypress Semiconductor CYPD2704-09FNXIT, USB Controller, USB, 2.7 to 5.5 V, 9-Pin CSP, Контроллер

Type-C Support and USB-PD Support
Supports USB PD3.0 spec and USB Type-C spec version 1.3 (Including support for the revised minimum VCONN operating voltage of 3 V)
Integrated high-voltage protection on CC, VCONN1, and VCONN2 pins to protect against accidental shorts to the VBUS pin on the Type-C connector
40-byte storage programmable over Type-C interface for storing vendor-, device-, and cable-specific configuration data
Termination resistor RA on VCONN1 and VCONN2
Supports RA weakening to reduce power consumption
Supports electronically marked passive cable implementations with one or two controllers Clocks and Oscillators
Integrated oscillator eliminating the need for external clock Power
2.7 V to 5.5 V operation
Sleep: 1.7 mA System-Level ESD Protection
On CC, VCONN1, and VCONN2 pins
± 8 kV Contact Discharge and ±15 kV Air Gap Discharge
Package
9-ball WLCSP
Supports industrial temperature range (-40 °C to +85 °C)

Datasheet CYPD2704-09FNXIT
