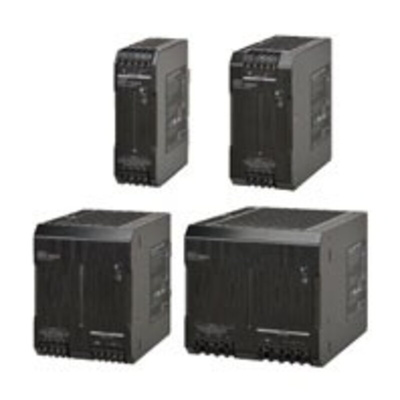

Omron Switching Power Supply, S8VK-T12024, 24V dc, 5A, 120W, 1 Output, 380 → 480 V ac, 450 → 600 V dc, Источник питания

Worldwide 3-phase Power Supply Resistant in tough environments Easy and fast installation The most compact class on the market

Wide input range for worldwide applications: 380 to 480 VAC (320 to 576 VAC)
Possible for 2-phase input usage: 380 to 480 VAC (340 to 576 VAC)When using the 960 W at 2-phase input, the power rating is 768 W.
DC input can be available:450 to 600 VDC (450 to 810 VDC)Excluding 960 W
High efficiency 91% typ. at 480 W model
Wide operation temperature range: –40 to 70°C
Power Boost function at 120%
Three years Warranty

Case model, Input: 450 to600 VDC (450 to 810 VDC), Input: 380 to 480 VAC, Power rating 120 W, Output: 24 VDC, Terminal blocks (Rod terminal), Parallel operation, Harmonic current emissions

Datasheet
