224-101, Wago 224 Series Connector, 24A

224 Series

Lighting connectors designed specifically for the application of fitting wall mounting and ceiling luminaries. Prepare wires by stripping to 9-11mm.

Reliable and vibration proof interconnections
Installation side cable acceptance, 1.0 – 2.5mm² solid pushwire
Lighting side cable acceptance, 0.5 – 2.5mm² solid and fine-stranded (flex) cage clamp

Note

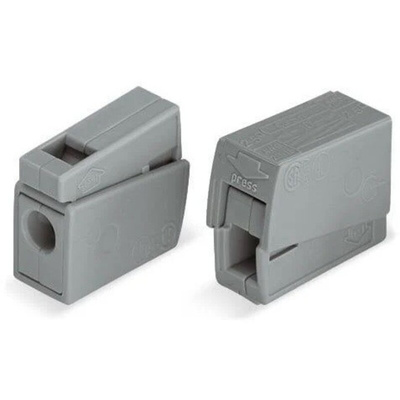

Stock no. 181-4068 has a cage clamp and a push wire connection, stock no. 297-3174 has 1 cage clamp but 2 push wire connections
Stock No. 178-6676 has 2 cage clamp connections. See Connector on the right hand side of the image

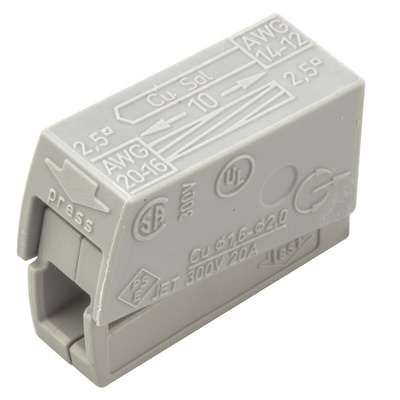

Wago Lighting Connector, Cage Clamp Termination, 400V Voltage Rating - 224 Series - 224-101

For installations that are on the button every time, choose this lighting connector from Wago. It uses cage clamp and push-wire connections to forge the link between fine-stranded and solid conductors. Just slide the wires in, push the top of the unit down, and the job's done. The component resists vibration to ensure your installation doesn't budge for a reliable setup with a long service life. 10 connectors per pack give you stock in hand for future jobs.

Features & Benefits

• Push button operation for quick release if you need to change your system
• Voltage rating of 400V and current rating of 24A make it suitable for use with heavy-duty equipment
• Maximum continuous service temperature of +105°C to hold its own in heated conditions

Applications

• Warehouses
• Distribution centres
• Laboratories
• Aircraft hangars

What wire sizes does this connector accept?

It accommodates 18 to 14AWG solid wires on the installation side and fine-stranded wires from 20 to 14AWG on the lighting side, giving flexibility of use.

Is there a module that has one cage-clamp connector and two push-wire connectors?

Yes, Wago makes a unit (297-3174) that fits the bill when your setup needs this configuration.

Approvals

ASTA; CCA; DEMKO; FIMKO; NEMKO; SEMKO; GL; KEMA; OVE; RMR; Rose TesT; VDE
