LE RTDCY S2WN, OSRAM Opto Semiconductors 2.8 (Red) V, 3.4 (Coverted Yellow) V, 3.4 (Deep Blue) V, 4.1 (True Green) V RGBY LED SMT SMD,Osram Opto OSTAR LE RTDCY, Светодиод

Osram Opto Semiconductors LED

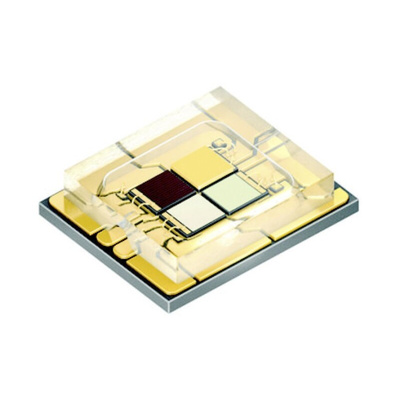

The Osram Opto Semiconductors is a 2.8V (red), 3.4V (converted yellow), 3.4V (deep blue), 4.1V (true green) RGBY surface mount LED. It has a length of 5.75mm, a width of 4.68mm and height of 1.1mm. It features common anode technology that admits an additive mixture of colour stimuli by independent driving of each chip. The extremely compact size fits best for high-resolution narrow pitch video walls, indoor and outdoor displays.

Features and Benefits

• Package is a compact light source in multi-chip SMT technology with a glass window on top
• Chip technology is thin film/UX:3
• Type radiation is 120° (Lambertian emitter)
• Colours are λdom = 625nm (red), λdom = 525nm (true green), λdom = 453nm (deep blue), Cx = 0.57, Cy = 0.42
• Operating temperature ranges between -40°C and 85°C

Applications

• Architecture
• Mood lighting
• Stage lighting (LED and laser)

Datasheet LE RTDCY S2WN
