4052899986312, Osram LED Driver, 42V Output, 29.4W Output, 500mA Output Dimmable, Драйвер светодиодов

Osram LED Driver

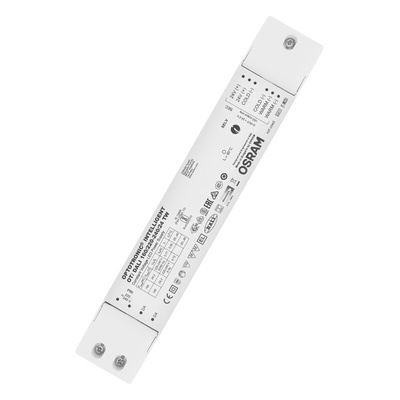

The Osram OTi DALI 160/220-240/24 TW LED driver that supplies power with DALI that enables you to enjoy flicker-free light due to a high-frequency PWM, dimmable to between 0.1 and 100% with Touch DIM. You can use from 1 to 4 channels and benefit from DALI message detection of LED module failure. The slender form of these drivers makes them ideal for use when you need to install LED lighting in tight spaces or linear luminaires.

Features and Benefits

• Line frequency 0Hz/50Hz/60Hz
• Nominal output power 160W
• Nominal supply Voltage is 220V to 240V
• Output supply voltage is 24V
• Temperature range at storage is between -25°C and 85°C

Applications

• Cove lighting, wall washer, corridor, handrail
• Suitable for use in luminaires of protection class I and II

Certifications

• CCC certified
• CE certified
• EAC certified
• EL certified
• EMC certified
• EN 61347-1, EN 61347-2-13, EN 61547, EN 61000-3-2, EN 62384, EN 60598-2-22, EN 62386,
• ENEC 10
• IP20 rating
• RCM certified
• VDE certified

Datasheet
