4052899545823, Osram LED Driver, 42V Output, 29.4W Output, 500mA Output Dimmable, Драйвер светодиодов

Osram LED Driver

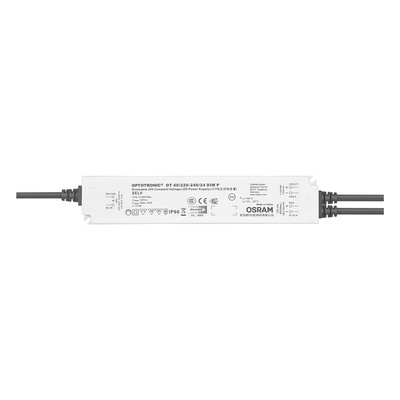

The Osram OT FIT 40/220-240/24 P is a dimmable LED driver that gives a 24.2V constant voltage.

Features and Benefits

• Dimming range is 1% to 100%
• High electronic reversible short circuit, overload, over temperature protection
• Independent installation possible
• Input voltage range is from 198VAC to 264VAC
• Installation in very cold and hot environments
• Lifetime is up to 50,000h
• Nominal output power is 40W
• Nominal Supply voltage is 220 to 240V
• Output supply voltage is 24.2V
• Smart power supply boosting power to turn on cold LEDs
• Surge protection is up to 4kV
• Very stable output power

Applications

• Facades, public squares, cruise ships
• Signage
• Suitable for indoor and outdoor installations

Certifications

• 1P67 rating
• CCC certified
• EAC certified
• EN 61347-1, EN 61347-2-13, EN 61000-3-2, EN 55015, EN 60598-2-22, EN 61000-3-3, EN 61547, EN 62384
• ENEC certified
• IP66 rating
• RCM certified

Datasheet
