PUN-4X0,75-S-0,5-DUO-BS, Festo 0.5m, Polyurethane Recoil Hose, Трубка

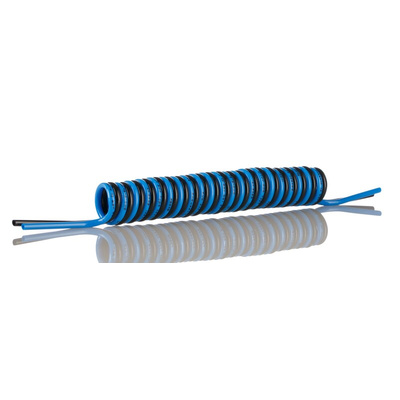

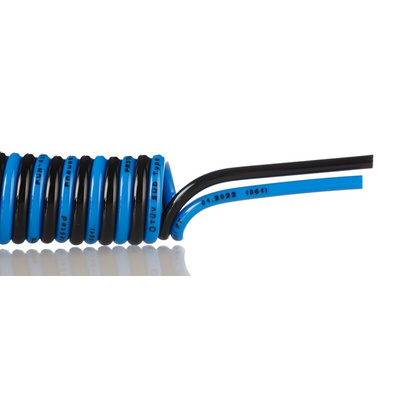

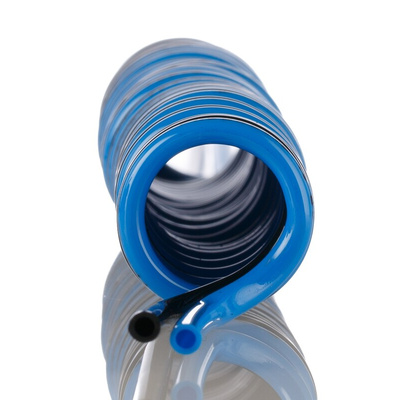

Festo Spiral Plastic Tubing, 2.6mm ID, 4mm OD - PUN-4X0.75-S-0.5-DUO-BS

Transfer compressed air in your pneumatic system using this durable spiral plastic tubing from Festo. For versatility, it comes without end fittings, so you can attach a wide array of connectors to it. A broad operating temperature range of -35°C to +60°C means you can use it in demanding environments. This tubing is made from a thermoplastic polyurethane (TPE) material that has excellent flexibility, making it simple to bend as needed to fit it into your system.

• Wide operating pressure range of -0.95 to 10 bar for use in low-pressure applications
• Light weight of 25g to minimise strain on equipment
• Shore D hardness of 52 +3 for high levels of rigidity under pressure

Applications

• Robotics applications
• Material handling
• Printing presses
• HVAC (heating, ventilation and air conditioning) systems

What pneumatic ports can I connect to this tubing?

This unit is compatible with a push-in fitting tube with an outside diameter of 4mm. You can also connect it to barbed connectors with or without locking nuts and an outer diameter of 3mm, making it a versatile choice.
