PAN-6X1-BL, Festo Compressed Air Pipe Blue Polyamide 6mm x 50m PAN Series, 553907, Шланг

Festo Air Hose

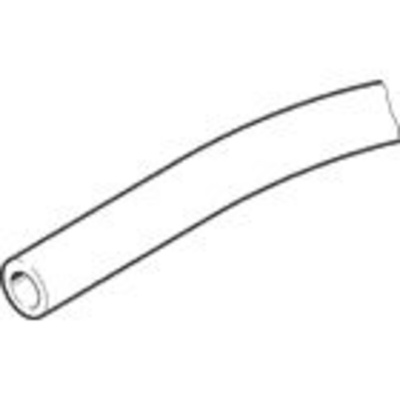

The Festo blue polyamide air hose has high thermal and mechanical load capacities. It is compatible with cable carriers for applications with a high cycle rate. The flow-relevant bending radius is given as Rd. The tubing is bent in the direction of its inherent flection until a 5% flattening of the tubing OD occurs. The bending radius is then calculated. There is no reduction in the flow rate until the bending radius is reached. The minimum bending radius is Rmin. Pneumatic connection for plug nipple inside diameter 4mm with nut for push-in fitting and exterior diameter 6mm.

Features and Benefits

• Highly flexible plastic tube
• Hydrolysis resistant making it suitable for water applications
• Compatible with a wide variety of fittings
• Operating pressure ranges between -0.95bar and 19bar
• Free of copper and PTFE

Applications

• Water applications
• Suitable to use in clean rooms
• Food industry

Certifications

• ISO8573-1:2010

Datasheet PAN-6X1-BL
