QSMLV-M5-3-I, Festo Threaded-to-Tube Pneumatic Fitting, M5 to, Push In 3 mm, QSMLV Series, 6 bar, Переходник

1816133
Номер производителя: QSMLV-M5-3-IПроизводитель: Festo
Цена за 1 упаковку (10 шт)
16956.00 руб. (С НДС) *
Количество 5+ 10+
Цена 16287.00 руб. 15591.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Festo Pneumatic Elbow Threaded-To-Tube Adapter

The Festo pneumatic threaded to tube miniature size adaptor is used for certain pneumatic control applications. It can withstand pressure up to 14bar. This push-in fitting range includes over 1000 types of standard as well as function fittings. It offers convenient selection of the right fitting to provide the best possible solution for every connection. These miniature push-in fittings ensure maximum component density in confined spaces.

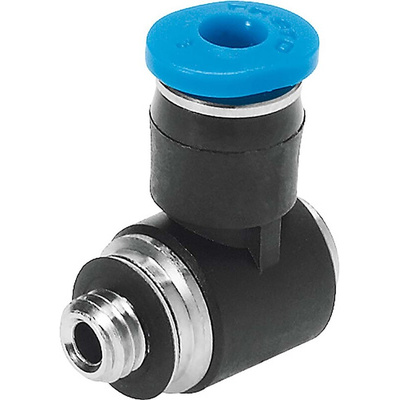

Festo QSMLV-M5-3-I Mini Push-in Pneumatic Fitting

The QSMLV-M5-3-I from Festo is a high quality, pneumatic connector which offers both maximum flexibility and quick installation due to the convenient push-in fitting type.

The QSMLV series pneumatic elbow adaptor has M5 male thread connection and push-in 3mm tube outlet port which is made of nickel plated brass. The housing is made of PBT-reinforced material. It has miniature push-in fittings for maximum component density in confined spaces and is orientable after assembly.

Features and Benefits

• Male thread M5 – connection port 1
• Tubing size O.D 3 mm port 2 connection
• Orientable 360° fitting
• Sealing ring on screw in lid
• Mini size, perfect for use in confined spaces
• Temperature ranges between -10°C and 80°C
• Push in type ensuring quick and simple installation
• Threaded to tube style connection
• High performing and durable thermoplastic (PBT)
• Any mounting/ assembly position

Applications

• Aerospace
• Air compressors
• Gas stations
• Mining industry

Техническая спецификация
pdfDatasheet QSMLV-M5-3-I
Встречающиеся стандарты:
ISO 228-1
Давление - максимальное рабочее:
6 бар
Корпус - материал:
PBT
Производитель - серия:
QSMLV
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-10°C
Разъем A:
M5
Разъем A - Тип:
Male
Разъем B:
Push In 3 mm
Стиль подключения:
Threaded-to-Tube
Тип монтажа:
Inline
