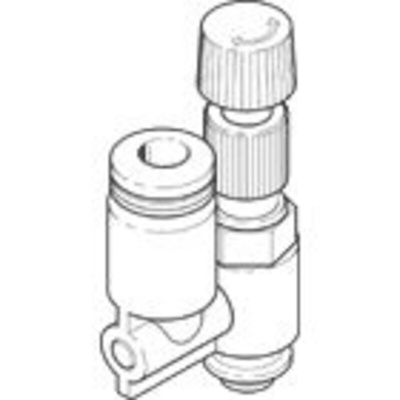

LRL-1/8-QS-4, Festo LRL Series Threaded Flow Regulator, R 1/8 Inlet Port x Push In 4 mm Tube Outlet Port, 153511

Festo Flow Regulator

The Festo LRL-1/8-QS-4 differential pressure regulator with R1/8 inlet port and push in 4mm tube outlet port is made of nickel plated brass. The housing is made of PBT-reinforced material. The differential pressure regulator maintains a manually adjusted differential pressure between the primary pressure at the screw-in thread and the output pressure at the QS push-in connector. Pressure applied at the QS push-in connector can be exhausted with no change in pressure at the thread connection end thanks to an integrated non-return valve.

Features and Benefits

• 360° assembly position
• Ambient temperature ranges between 0°C and 60°C
• Knurled screw with lock nut actuator lock
• Nickel plated brass threaded plug
• Outlet pressure ranges between 2bar and 6bar
• PBT-reinforced housing
• Pressure range between 2bar and 6bar
• PTFE threaded seal
• Push-in connector can be rotated 360°
• Push-in connector for tubing outer diameter 4mm to 12mm
• Screw-in thread M5, Rx, R1/4, Ry, R1/2
• Threaded and push-in connector regulator
• Threaded R1/8 inlet and push-in QS-4 outlet connection

Applications

• Aerospace
• Air compressors
• Gas stations
• Medical fields
• Mining industry
• Pressure regulation of compressed air

Certifications

• ISO8573-1:2010

Datasheet LRL-1/8-QS-4
